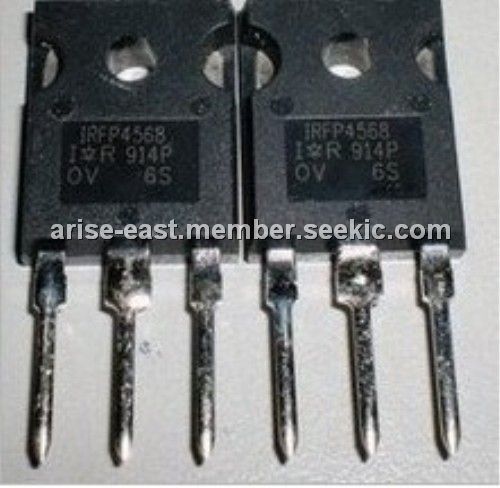

Product Summary

The IRFP4568PBF is a power mosfet.

Parametrics

IRFP4568PBF absolute maximum ratings: (1)ID @ TC = 25°C Continuous Drain Current, VGS @ 10V (Silicon Limited): 171A; (2)ID @ TC = 100°C Continuous Drain Current, VGS @ 10V (Silicon Limited): 121A; (3)IDM Pulsed Drain Current ①: 684A; (4)PD @TC = 25°C Maximum Power Dissipation: 517W; (5)VGS Gate-to-Source Voltage V: ± 30V; (6)dv/dt Peak Diode Recovery ③: 8.5V/ns.

Features

IRFP4568PBF features: (1)Improved Gate, Avalanche and Dynamic dV/dt Ruggedness; (2)Fully Characterized Capacitance and Avalanche SOA; (3)Enhanced body diode dV/dt and dI/dt Capability; (4)Lead-Free.

Diagrams

IRFP4568PBF pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
IRFP4568PBF
IRFP4568PBF
International Rectifier
MOSFET MOSFT 150V 171 5.9mOhm 151nC Qg
Data Sheet
0-1: $4.75
1-25: $3.47
25-100: $2.75
100-250: $2.65
