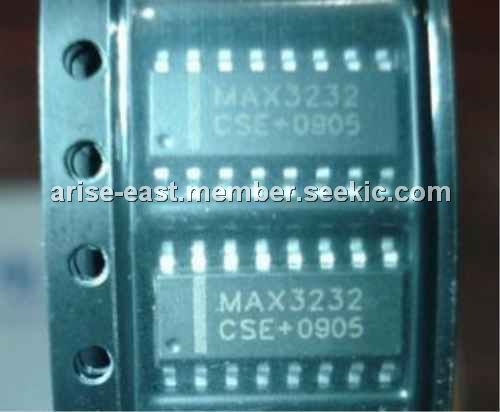

MAX3232CSE+

Product Summary

The MAX3232CSE+ transceiver has a proprietary low-dropout transmitter output stage enabling true RS-232 performance from a 3.0V to 5.5V supply with a dual charge pump. The device requires only four small 0.1μF external chargepump capacitors. The MAX3232CSE+ is guaranteed to run at data rates of 120kbps while maintaining RS-232 output levels. The MAX3232CSE+ has 2 receivers and 2 drivers. The MAX3232CSE+ is pin, package, and functionally compatible with the industry-standard MAX242 and MAX232, respectively. These extra outputs are always active, allowing external devices such as a modem to be monitored without forward biasing the protection diodes in circuitry that may have VCC completely removed.

Parametrics

MAX3232CSE+ absolute Maximum Ratings: (1)VCC: -0.3V to +6V; (2)V+ (Note 1): -0.3V to +7V; (3)V- (Note 1): +0.3V to -7V; (4)V+ + V- (Note 1): +13V; (5)Input Voltages; (6)T_IN, SHDN, EN: -0.3V to +6V; (7)MBAUD: -0.3V to (VCC + 0.3V); (8)R_IN: ±25V; (9)Output Voltages; (10)T_OUT: ±13.2V; (11)R_OUT: -0.3V to (VCC + 0.3V); (12)Short-Circuit Duration; (13)16-Pin Plastic DIP (derate 10.53mW/℃ above +70℃): 842mW; (14)16-Pin Narrow SO (derate 8.70mW/℃ above +70℃): 696mW; (15)16-Pin Wide SO (derate 9.52mW/℃ above +70℃): 762mW; (16)18-Pin Plastic DIP (derate 11.11mW/℃ above +70℃): 889mW; (17)18-Pin SO (derate 9.52mW/℃ above +70℃): 762mW; (18)20-Pin SSOP (derate 8.00mW/℃ above +70℃): 640mW; (19)28-Pin SO (derate 12.50mW/℃ above +70℃): 1W; (20)28-Pin SSOP (derate 9.52mW/℃ above +70℃): 762mW; (21)Operating Temperature Ranges of MAX32_ _C_ _: 0℃ to +70℃; (22)Operating Temperature Ranges of MAX32_ _E_ _ : -40℃ to +85℃; (23)Storage Temperature Range: -65℃ to +150℃; (24)Lead Temperature (soldering, 10sec): +300℃.

Features

MAX3232CSE+ features: (1)A Low Supply Current:300μA (MAX3222/MAX3232/MAX3241), 500μA (MAX3237); (2)Guaranteed Data Rate:120kbps (MAX3222/ MAX3232/ MAX3241), 250kbps (MAX3237—Normal Operation), 1Mbps (MAX3237—MegaBaud Operation); (3)1μA Low-Power Shutdown with Receivers Active (MAX3222/MAX3237/MAX3241); (4)Flow-Through Pinout (MAX3237) Meets EIA/TIA-232 Specifications Down to 3.0V; (5)Guaranteed Mouse Driveability (MAX3241); (6)Pin Compatible with Industry-Standard MAX232 (MAX3232); (7)Pin Compatible with Industry-Standard MAX242 (MAX3222); (8)Guaranteed Slew Rate:6V/μs (MAX3222/MAX3232/MAX3237/MAX3241), 24V/μs (MAX3237—MegaBaud Operation).

Diagrams
