Product Summary

The EP2C20Q240C8N Altera Cyclone II FPGA extends the low-cost FPGA density range to 68,416 logic elements (LEs) and provide up to 622 usable I/O pins and up to 1.1 Mbits of embedded memory. It is manufactured on 300-mm wafers using TSMCs 90-nm low-k dielectric process to ensure rapid availability and low cost. By minimizing silicon area, the EP2C20Q240C8N can support complex digital systems on a single chip at a cost that rivals that of ASICs. The low cost and optimized feature set of the Cyclone II FPGA make them ideal solutions for a wide array of automotive, consumer, communications, video processing, test and measurement, and other end-market solutions. The EP2C20Q240C8N contains a two-dimensional row- and column-based architecture to implement custom logic. It ranges in density from 4,608 to 68,416 LEs.

Parametrics

EP2C20Q240C8N absolute maximum ratings: (1)VCCINT, Supply voltage With respect to ground: –0.5 to 1.8 V; (2)VCCIO, Output supply voltage: –0.5 to 4.6 V; (3)VCCA_PLL [1..4], PLL supply voltage: –0.5 to 1.8 V; (4)VIN, DC input voltage: -0.5 to 4.6 V; (5)IOUT, DC output current, per pin: -25 to 40 mA; (6)TSTG, Storage temperature, No bias: –65 to 150 ℃; (7)TJ, Junction temperature, BGA packages under bias: 125 ℃.

Features

EP2C20Q240C8N features: (1)High-density architecture with 4,608 to 68,416 LEs; (2)Embedded multipliers: Up to 150 18×18-bit multipliers are each configurable as two independent 9× 9-bit multipliers with up to 250-MHz performance; Optional input and output registers; (3)Advanced I/O support; (4)Flexible clock management circuitry: Hierarchical clock network for up to 402.5-MHz performance; Up to four PLLs per device provide clock multiplication and division, phase shifting, programmable duty cycle, and external; (5)clock outputs, allowing system-level clock management and skew control; Up to 16 global clock lines in the global clock network that drive throughout the entire device; (6)Device configuration: Fast serial configuration allows configuration times less than 100 ms; Decompression feature allows for smaller programming file storage and faster configuration times; Supports multiple configuration modes: active serial, passive serial, and JTAG-based configuration; Supports configuration through low-cost serial configuration devices; Device configuration supports multiple voltages (either 3.3, 2.5, or 1.8 V).

Diagrams

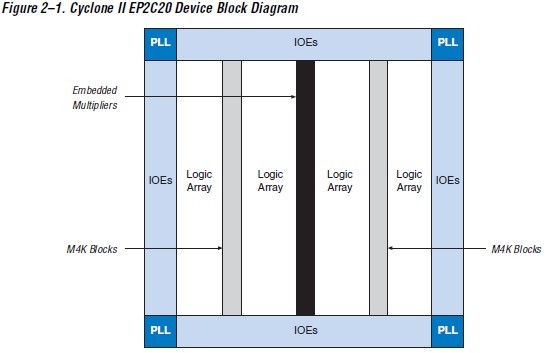

EP2C20Q240C8N block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

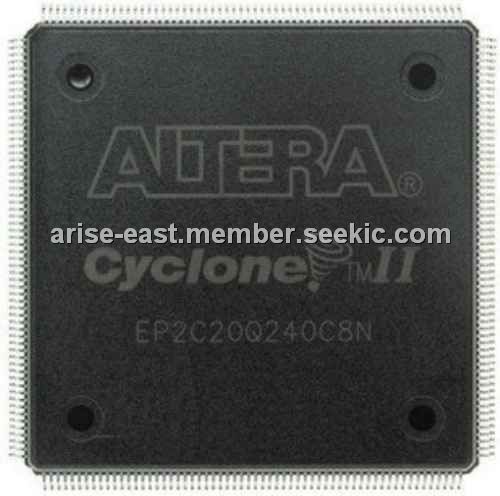

EP2C20Q240C8N
EP2C20Q240C8N


IC CYCLONE II FPGA 20K 240-PQFP

Data Sheet

0-1: $25.62
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
EP2C15AF256C6N
EP2C15AF256C6N


IC CYCLONE II FPGA 15K 256-FBGA

Data Sheet

0-1: $31.20
EP2C15AF256C7N
EP2C15AF256C7N


IC CYCLONE II FPGA 15K 256-FBGA

Data Sheet

0-90: $24.96
EP2C15AF256C8N
EP2C15AF256C8N


IC CYCLONE II FPGA 15K 256-FBGA

Data Sheet

0-1: $20.82
EP2C15AF256I8N
EP2C15AF256I8N


IC CYCLONE II FPGA 15K 256-FBGA

Data Sheet

0-1: $24.96
EP2C15AF484C6N
EP2C15AF484C6N


IC CYCLONE II FPGA 15K 484-FBGA

Data Sheet

0-1: $35.04
EP2C15AF484C7N
EP2C15AF484C7N


IC CYCLONE II FPGA 15K 484-FBGA

Data Sheet

0-60: $28.02
