Product Summary

The 1N4007 is a general Purpose Rectifier.

Parametrics

1N4007 absolute maximum ratings: (1)Peak Repetitive Reverse Voltage: 1000 V; (2)Average Rectified Forward Current, 375" lead length @ TA = 75℃: 1.0 A; (3)Non-repetitive Peak Forward Surge Current, 8.3 ms Single Half-Sine-Wave: 30 A; (4)Storage Temperature Range: -55 to +175 ℃; (5)Operating Junction Temperature: -55 to +175 ℃.

Features

1N4007 features: (1)Low forward voltage drop; (2)High surge current capability.

Diagrams

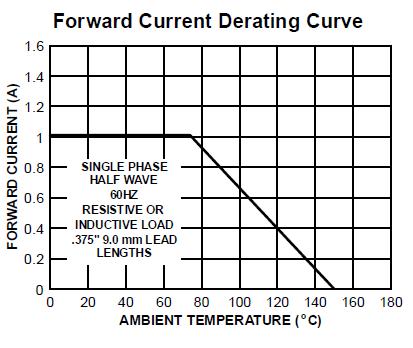

1N4007 Forward Current Derating Curve

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
1N4007
1N4007

Fairchild Semiconductor

Rectifiers Vr/1000V Io/1A

Data Sheet

0-1: $0.08
1-25: $0.08
25-100: $0.05
100-250: $0.03
1N4007/54
1N4007/54


RECTIFIER 1A 1000V DO-41

Data Sheet

Negotiable
1N4007/L
1N4007/L

Other


Data Sheet

Negotiable
1N4007_Q
1N4007_Q

Fairchild Semiconductor

Rectifiers Vr/1000V Io/1A

Data Sheet

0-1: $0.01
1-25: $0.01
25-100: $0.01
100-500: $0.01
1N4007-19
1N4007-19

Taiwan Semiconductor

Rectifiers 1A,1600V,Std SILASTIC Rect

Data Sheet

0-20000: $0.01
1N4007A
1N4007A

Other


Data Sheet

Negotiable
1N4007-B
1N4007-B

Rectron

Rectifiers Vr/1000V Io/1A BULK

Data Sheet

0-1: $0.02
1-100: $0.01
100-500: $0.01
500-1000: $0.01
1N4007B-G
1N4007B-G

Comchip Technology

Rectifiers

Data Sheet

0-1: $0.14
1-10: $0.10
10-100: $0.07
100-250: $0.05
