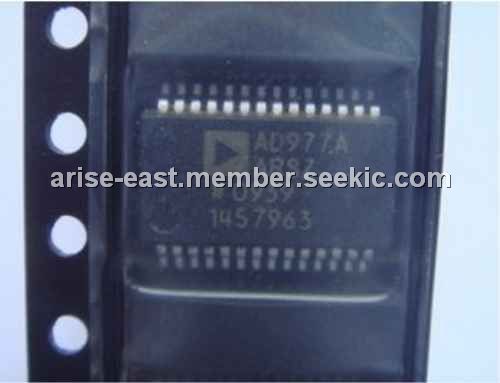

AD977A

high speed, low power 16-bit A/D converter, SOP28, 7V, Power-Down Mode, High Speed Serial Interface

Rated 5 Rating 5 | reviews | Write a review

Price:: US $4.50~6.30 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $4.50~6.30

PartNumber:: AD977A

Brand:: Analog Devices - ADI | Pack: SOP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. abby's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-10-26

From Other Seller

Part Number:AD977A
US $4.50 - 6.30
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

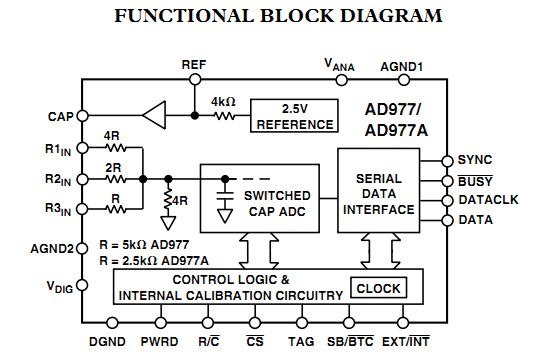

The AD977A is a high speed, low power 16-bit A/D converter that operates from a single 5 V supply. The AD977A has a throughput rate of 200 kSPS whereas the AD977A has a throughput rate of 100 kSPS. Each part contains a successive approximation, switched capacitor ADC, an internal 2.5 V reference, and a high speed serial interface. The ADC is factory calibrated to minimize all linearity errors. The AD977A is specified for full scale bipolar input ranges of ±10V, ±5V and±3.3V, and unipolar ranges of 0V to 10V, 0V to 5V and 0V to 4V.

Parametrics

AD977A absolute maximum ratings: (1)Analog Inputs, R1IN, R2IN , R3IN: ±25 V; CAP: +VANA + 0.3 V to AGND2 – 0.3 V; REF: Indefinite Short to AGND2, Momentary Short to VANA; (2)Ground Voltage Differences, DGND, AGND1, AGND2: ±0.3 V; (3)Supply Voltages; (4)VANA: 7 V; (5)VDIG to VANA: ±7 V; (6)VDIG: 7 V; (7)Digital Inputs: –0.3 V to VDIG + 0.3 V; (8)Internal Power Dissipation, PDIP (N), SOIC (R), SSOP (RS): 700 mW; (9)Junction Temperature: 150℃; (10)Storage Temperature Range N:–65 to +150℃; (11)Lead Temperature Range (Soldering 10 sec): 300℃.

Features

AD977A features: (1)Fast 16-Bit ADC: 200 kSPS Throughput Rate—AD977A; (2)Single 5 V Supply Operation; (3)Power Dissipation 100 mW Max; (4)Power-Down Mode 50μW; (5)Input Ranges: Unipolar; 0 V–10 V, 0 V–5 V and 0 V–4 V; Bipolar; ±10 V, ±5 V and ±3.3 V; (6)Choice of External or Internal 2.5 V Reference; (7)High Speed Serial Interface; (8)On-Chip Clock; (9)20-Lead Skinny DIP or SOIC Package; (10)28-Lead Skinny SSOP Package.
