LES15A48-5V0RAJ

DC/DC CONVERTERS, LES15A48-5V0RAJ, Emerson Isolated DC/DC Power Suppy, Cypower

Rated 5 Rating 5 | reviews | Write a review

Price:: US $28.00~35.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $28.00~35.00

PartNumber:: LES15A48-5V0RAJ

Brand:: Artesyn Technologies - Artesyn | Pack: DIP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. abby's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-08-09

From Other Seller

Part Number:LES15A48-5V0RAJ
US $28.00 - 35.00
AT25256AW-10SU-2.7

US $0.65 - 1.50 / Piece
(0) Remove
CM300DY-12NF

US $63.00 - 80.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

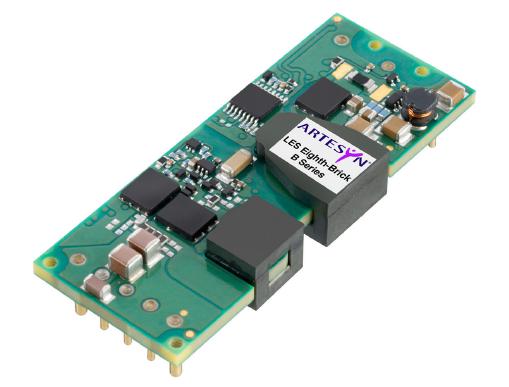

The LES15A48-5V0RAJ is a 75 watt, open frame, single output isolated DC/DC power converter in an industry standard 1/8 package. This thru hole mount power supply has a 48.00v nominal input with 36.00-75.00v input range. The regulated output(s) are rated 5.00v at 15.00a. The LES15A48-5V0RAJ is general purpose rated with an operating temperature range of -40 to 85℃ and up to 92% efficiency and has 0.1880 inch pins. The LES15A48-5V0RAJ is Rohs 6/6 compliant and backed by a 2 year warranty. Other features include: 2250 DC volts of isolation.

Parametrics

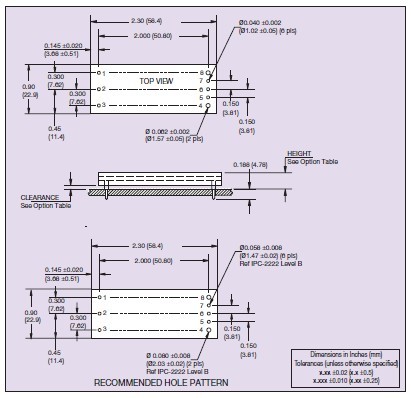

LES15A48-5V0RAJ absolute maximum ratings: (1)Pkg Style: Open; (2)Mounting: Thru hole; (3)Rohs: 6/6; (4)Rated: General Purpose; (5)Warranty: 2 years; (6)Enable Ctrl Pin: Yes; (7)BasePlate: No; (8)Inputs: 36 to 75 DC; (9)Outputs: Volts Amps v1 4-5.5 15; (10)Watts: 75; (11)Regulated: Yes; (12)Efficiency: 92%; (13)Pin Length: .188 in; (14)Dimensions (L x W x H): 2.3 x .9 x .3 in; (15)Weight: .05 lbs lbs g ; (16)Operating Temp: -40℃ to 85℃ °F ℃; (17)Isolation: 2250 volts.

Features

LES15A48-5V0RAJ features: (1)Ultra-high e ciency topology; (2)Industry standard eighth brick footprint (identical to quarter-brick pinout); (3)Low pr through-hole version; (4)Low pr with 38% space savings over other quarter-brick brick converters; (5)Wi de ambient temperature range, -40℃ to +85℃; (6)80% to 110% output trim; (7)Monotonic start-up in normal and prebiased loads; (8)Basic insulation system; (9)Overvoltage and overtemperature protection; (10)Secondary side control, no optocouplers, fast transient response; (11)100 V, 100 ms input voltage transient rated; (12)Available RoHS compliant.
