Product Summary

The CC1020RUZR is a true single-chip UHF transceiver designed for very low power and very low voltage wireless applications. The circuit is mainly intended for the ISM (Industrial, Scientific and Medical) and SRD (Short Range Device) frequency bands at 402, 424, 426, 429, 433, 447, 449, 469, 868 and 915 MHz, but can easily be programmed for multi-channel operation at other frequencies in he 402 - 470 and 804 - 940 MHz range. The CC1020RUZR is especially suited for narrowband systems with channel spacings of 12.5 or 25 kHz complying with ARIB STD T-67 and EN 300 220. CC1020RUZR is based on Chipcon SmartRF 02 technology in 0.35 μm CMOS.

Parametrics

CC1020RUZR absolute maximum ratings: (1)Supply voltage, VDD: -0.3 to 5.0 V at All supply pins must have the same voltage ; (2)Voltage on any pin: -0.3 to VDD+0.3, max 5.0 V ; (3)Input RF level: 10 dBm; (4)Storage temperature range: -50 to 150℃ ; (5)Package body temperature: 260℃; (6)Humidity non-condensing: 5 to 85% ; (7)ESD: ±1 kV; (Human Body Model) ±0.4 kV.

Features

CC1020RUZR features: (1)True single chip UHF RF transceiver ; (2)Frequency range 402 MHz - 470 MHz and 804 MHz - 940 MHz ; (3)High sensitivity (up to –118 dBm for a 12.5 kHz channel) ; (4)Programmable output power ; (5)Low current consumption (RX: 19.9 mA) ; (6)Low supply voltage (2.3 V to 3.6 V) ; (7)No external IF filter needed ; (8)Low-IF receiver ; (9)Very few external components required ; (10)Small size (QFN 32 package) ; (11)Pb-free package ; (12)Digital RSSI and carrier sense indicator.

Diagrams

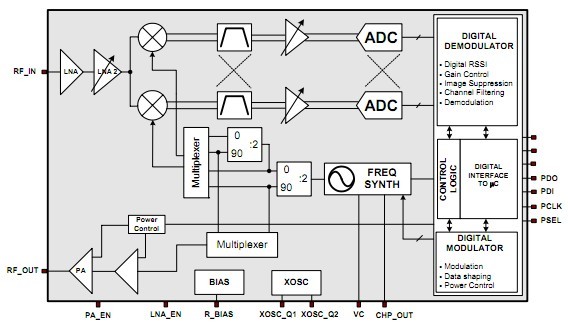

CC1020RUZR block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
CC1020RUZR
CC1020RUZR

Texas Instruments

RF Transceiver Sgl-Chip FSK/OOK CMOS RF Transceiver

Data Sheet

0-1: $3.89
1-25: $3.28
25-100: $3.01
100-250: $2.74
