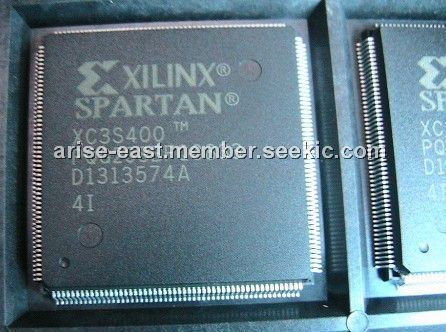

XC3S400-4PQG208C

Product Summary

The XC3S400-4PQG208C is a field-programmable gate array. The Spartantm -3 family of Field-Programmable Gate Arrays is specifically designed to meet the needs of high volume, cost-sensitive consumer electronic applications. The eight-member family offers densities ranging from 50,000 to five million system gates, as shown in Table 1. The Spartan-3 family builds on the success of the earlier Spartan-IIE family by increasing the amount of logic resources, the capacity of internal RAM, the total number of I/Os, and the overall level of performance as well as by improving clock management functions. Numerous enhancements derive from state-of-the-art Virtextm;-II technology. These Spartan-3 enhancements, combined with advanced process technology, deliver more functionality and bandwidth per dollar than was previously possible, setting new standards in the programmable logic industry.Because of their exceptionally low cost, Spartan-3 FPGAs are ideally suited to a wide range of consumer electronics applications, including broadband access, home networking, display/projection and digital television equipment. The Spartan-3 family is a superior alternative to mask programmed ASICs. FPGAs avoid the high initial cost, the lengthy development cycles, and the inherent inflexibility of conventional ASICs. Also, FPGA programmability permits design upgrades in the field with no hardware replacement necessary, an impossibility with ASICs.

Parametrics

XC3S400-4PQG208C absolute maximum ratings: (1)VCCINT Internal supply voltage: –0.5, 1.32 V; (2)VCCAUX Auxiliary supply voltage: –0.5, 3.00 V; (3)VCCO Output driver supply voltage: –0.5, 3.75 V; (4)VREF Input reference voltage: –0.5, VCCO+0.5(3)V; (5)VIN(2)Voltage applied to all User I/O pins and Dual-Purpose pins Voltage applied to all User I/O pins and Dual-Purpose pins: –0.5, VCCO+0.5(3)V; (6)VIN(2)Voltage applied to all Dedicated pins Driver in a high-impedance state: –0.5, VCCAUX+0.5(4)V.

Features

XC3S400-4PQG208C features: (1)Very low cost, high-performance logic solution for high-volume, consumer-oriented applications: Densities as high as 74,880 logic cells, Three power rails: for core (1.2V), I/Os (1.2V to 3.3V), and auxiliary purposes (2.5V); (2)Eight global clock lines and abundant routing; (3)Fully supported by Xilinx ISE development system: Synthesis, mapping, placement and routing; (4)MicroBlazetm; processor, PCI, and other cores; (5)Pb-free packaging options; (6)Low-power Spartan-3L Family and Automotive: Spartan-3 XA Family options.

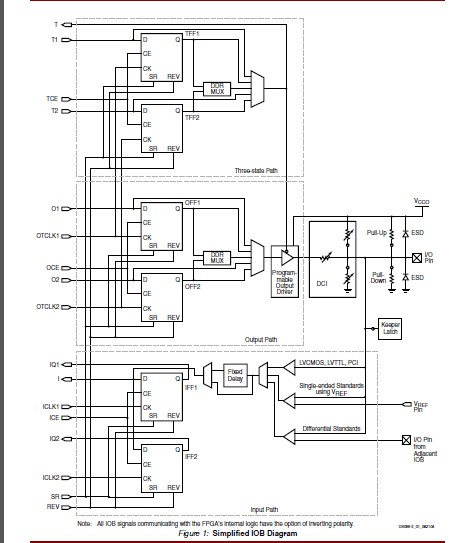

Diagrams
