Product Summary
The MBR2045CTG is a switchmode power rectifier designed for Power Supply-Output Rectification, Power Management, Instrumentation.
Parametrics
MBR2045CTG maximum ratings: (1)Peak Repetitive Reverse Voltage, VRRM: 45 V; (2)Working Peak Reverse Voltage, VRWM: 45 V; (3)DC Blocking Voltage, VR: 45 V; (4)Average Rectified Forward Current: Per Device, IF(AV)=20A; Per Diode (TC = 165℃); IF(AV)=10A ; (5)Peak Repetitive Forward Current per Diode Leg (Square Wave, 20 kHz, TC = 163℃), IFRM: 20 A; (6)Non Repetitive Peak Surge Current(Surge Applied at Rated Load Conditions Halfwave, Single Phase, 60 Hz), IFSM: 150 A; (7)Peak Repetitive Reverse Surge Current (2.0 us, 1.0 kHz), IRRM: 1.0 A; (8)Storage Temperature Range, Tstg: -65 to +175 ℃; (9)Operating Junction Temperature, TJ: -65 to +175 ℃; (10)Voltage Rate of Change (Rated VR), dv/dt: 10,000 V/us.
Features
MBR2045CTG features: (1)Low Forward Voltage; (2)Low Power Loss / High Efficiency; (3)High Surge Capacity; (4)175℃ Operating Junction Temperature; (5)20 A Total (10 A Per Diode Leg); (6)Pb-Free Package is Available.
Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

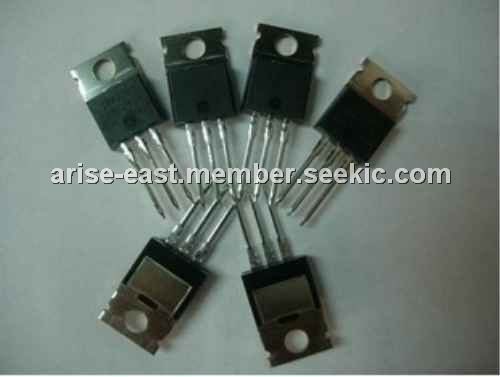

MBR2045CTG |
ON Semiconductor |
Schottky (Diodes & Rectifiers) 20A 45V |
Data Sheet |
|
|
|||||||||||||
