Product Summary
The TD62783AFG is an 8 ch High-Voltage Source Driver. It is comprised of eight source current Transistor Array. The TD62783AFG is specifically designed for fluorescent display applications. Applications include relay, hammer and lamp drivers. The suffix (G) appended to the part number represents a Lead (Pb)-Free product.
Parametrics
TD62783AFG absolute maximum ratings: (1)Supply voltage, VCC: 50 V; (2)Output current, IOUT: -500 mA/ch; (3)Input voltage, VIN: 15V; VIN: 30V; (4)Clamp diode reverse voltage, VR: 50 V; (5)Clamp diode forward current, IF: 500 mA; (6)Power dissipation, APG 1.47, PD: 1.47W; AFG: 0.96W; (7)Operating temperature, Topr: -40 to 85℃; (8)Storage temperature, Tstg: -55 to 150℃.
Features
TD62783AFG featurs: (1)High output voltage: VCC = 50 V (min); (2)Output current (single output): IOUT = -500 mA (min); (3)Output clamp diodes; (4)Single supply voltage; (5)Input compatible with various types of logic; (6)Package type-APG: DIP-18 pin; (7)Package type-AFG: SOP-18 pin.

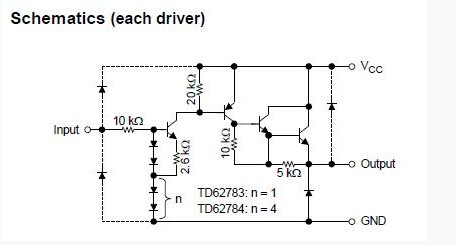

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TD62783AFG(5,S) |
Toshiba |
Display Drivers & Controllers 8CH. 50V/.5A IFD IC |
Data Sheet |
Negotiable |
|
||||||||||||
|
TD62783AFG(5,S,EL) |
Toshiba |
Display Drivers & Controllers 8CH. 50V/.5A IFD IC |
Data Sheet |
Negotiable |
|
||||||||||||
|
TD62783AFG(O,S,EL) |
Toshiba |
Display Drivers & Controllers 8-Ch NPN Driver 50V -500mA 5V |
Data Sheet |
|
|
||||||||||||
 |
TD62783AFG(O,S) |
Toshiba |
Display Drivers & Controllers 8-Ch NPN Driver 50V -500mA 5V |
Data Sheet |
|
|
||||||||||||
