Product Summary

The STM32F103T8U6 is a ARM-based 32-bit MCU. The STM32F103T8U6 medium-density performance line family operates from a 2.0 to 3.6 V power supply. STM32F103T8U6 is available in both the –40 to +85 °C temperature range and the –40 to +105 °C extended temperature range. A comprehensive set of power-saving mode allows the design of low-power applications. These features make the STM32F103T8U6 medium-density performance line microcontroller family suitable for a wide range of applications: Motor drive and application control, Medical and handheld equipment, PC peripherals gaming and GPS platforms, Industrial applications: PLC, inverters, printers, and scanners, Alarm systems, Video intercom, and HVAC.

Parametrics

STM32F103T8U6 absolute maximum ratings: (1)VDD–VSS External main supply voltage (including VDDA and VDD)(1): –0.3, 4.0 V; (2)VIN Input voltage on five volt tolerant pin(2): VSS-0.3, +5.5 V; (3)VIN Input: voltage on any other pin(2): VSS-0.3, VDD+0.3 v; (4)| VDDx| Variations between different VDD power pins: 50 mv; (5)|VSSX _VSS| Variations between all the different ground pins: 50 mv; (6)IVDD Total current into VDD/VDDA power lines (source)(1):150 mA; (7)IVSS Total current out of VSS ground lines (sink)(1): 150mA; (8)TSTG Storage temperature range: –65 to +150 °C; (9)TJ Maximum junction temperature: 150 °C.

Features

STM32F103T8U6 features: (1)Core: ARM 32-bit CortexTM-M3 CPU: 72 MHz maximum frequency, 1.25 DMIPS/MHz (Dhrystone 2.1)performance at 0 wait state memory access, Single-cycle multiplication and hardware division; (2)Memories: 64 or 128 Kbytes of Flash memory, 20 Kbytes of SRAM; (3)Low power: 7-channel DMA controller, Peripherals supported: timers, ADC, SPIs, I2Cs and USARTs; (4)Up to 80 fast I/O ports: 26/37/51/80 I/Os, all mappable on 16 external interrupt vectors and almost all 5 V-tolerant.

Diagrams

STM32F103T8U6 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

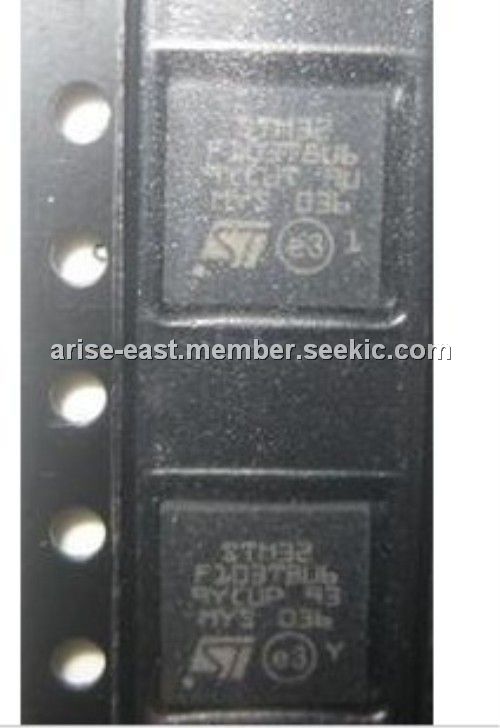

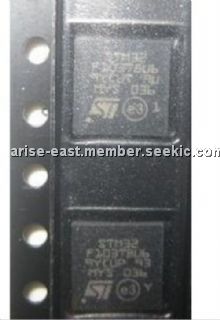

STM32F103T8U6
STM32F103T8U6
STMicroelectronics
ARM Microcontrollers (MCU) 32BIT Cortex M3 FL PERFORMANCE LINE
Data Sheet
0-1: $2.87
1-10: $2.78
10-100: $2.53
100-250: $2.33
STM32F103T8U6TR
STM32F103T8U6TR
STMicroelectronics
ARM Microcontrollers (MCU) 32-Bit ARM Cortex MED Density 64kb PL
Data Sheet
0-2310: $1.78
2310-3000: $1.78
