LM124J/883QS

Product Summary

The LM124J/883QS consists of four independent, high gain, internally frequency compensated operational amplifiers which were designed specifically to operate from a single power supply over a wide range of voltages. Operation from split power supplies is also possible and the low power supply current drain is independent of the magnitude of the power supply voltage. Application areas of the LM124J/883QS include transducer amplifiers, DC gain blocks and all the conventional op amp circuits which now can be more easily implemented in single power supply systems. For example, the LM124J/883QS can be directly operated off of the standard +5Vdc power supply voltage which is used in digital systems and will easily provide the required interface electronics without requiring the additional +15Vdc power supplies.

Parametrics

LM124J/883QS absolute maxing ratings: (1)CERDIP: 400mW; (2)CERPACK: 350mW; (3)Ceramic SOIC: 350mW; (4)Supply Voltage, V+: 36VDC or +18VDC; (5)Input Voltage Differential: 30VDC; (6)Input Voltage: -0.3VDC to +32VDC; (7)Input Current (VIN<-0.3VDC): 10 to 0.1mA; (8)Output Short-Circuit to GND, V+ ≤15VDC and TA=25℃ (One Amplifier): Continuous; (9)Operating Temperature Range: -55℃ ≤TA ≤+125℃; (10)Maximum Junction Temperature: 175℃; (11)Storage Temperature Range: -65℃ ≤TA ≤+150℃; (12)Lead Temperature (Soldering, 10 seconds): 260℃; (13)Thermal Resistance θJA CERDIP (Still Air): 120℃/W; (500LF/Min Air flow): 51℃/W; (14)CERPACK (Still Air): 140℃/W; (500LF/Min Air flow): 116℃/W; (15)Ceramic SOIC (Still Air): 140℃/W; (500LF/Min Air flow): 116℃/W; (16)θJC CERDIP: 35℃/W; CERPACK: 60℃/W; Ceramic SOIC: 60℃/W; (17)Package Weight (Typical) CERDIP: TBD; CERPACK: 460mg; Ceramic SOIC: 410mg; ESD Tolerance: 250V.

Features

LM124J/883QS features: (1)Internally frequency compensated for unity gain; (2)Large DC voltage gain 100dB; (3)Wide bandwidth (unity gain) 1 MHz(temperature compensated); (4)Wide power supply range: Single supply 3V to 32V or dual supplies ±1.5V to ±16V; (5)Very low supply current drain (700 μA)-essentially independent of supply voltage; (6)Low input biasing current 45 nA(temperature compensated); (7)Low input offset voltage 2mV and offset current: 5nA; (8)Input common-mode voltage range includes ground; (9)Differential input voltage range equal to the power supply voltage; (10)Large output voltage swing 0V to V+ -1.5V.

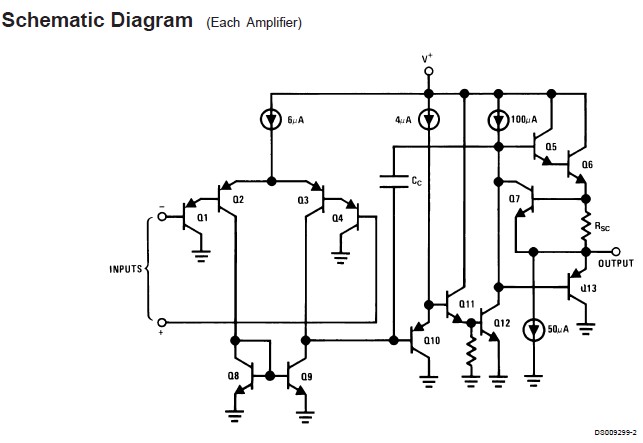

Diagrams
