Product Summary

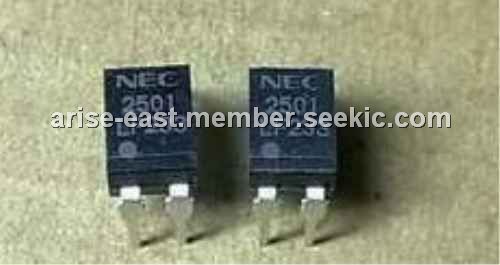

The NEC2501 is one member of the high isolation voltage single transistor type multi photocoupler series (optically coupled isolators containing a GaAs light emitting diode and an NPN silicon phototransistor). And NEC2501 can be used in power supply, telephone/fax, fa/oa equipment, programmable logic controller.
Parametrics
NEC2501 absolute maximum ratings: (1)reverse voltage:6V; (2)forward current (DC):80mA; (3)power dissipation derat-ing:150 mW/ch; (4)peak forward current:1 A; (5)collector to emitter voltage: 80V; (6)emitter to collector voltage:7V;(7)power dissipation derating:1.5 mW/℃; (8)storage temperature:-55 to +150℃;(9)operating ambient temperature:-55 to +100℃.
Features
NEC2501 features: (1)high isolation voltage (BV = 5 000 Vr.m.s.); (2)high collector to emitter voltage (VCEO = 80 V); (3)high-speed switching (tr = 3 ms TYP., tf = 5 ms TYP.); (4)ordering number of taping product: PS2501L-1-E3, E4, F3, F4, PS2501L-2-E3, E4; (5)UL approved: File No. E72422 (S).
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 NEC2501KK |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
NEC2501-L-1-E3 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
NEC2501LK |
Other |
|
Data Sheet |
Negotiable |
|
||||
