Product Summary

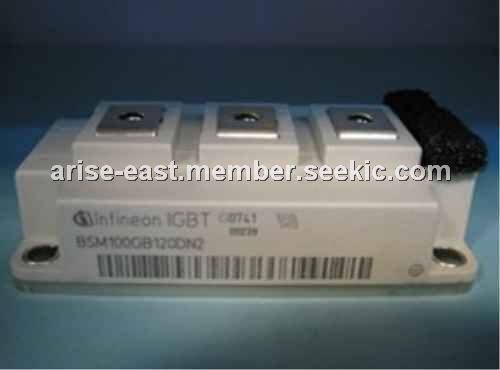

The BSM100GB120DN2K is an IGBT power module.

Parametrics

BSM100GB120DN2K absolute maximum ratings: (1)Collector-emitter voltage:1200V; (2)Collector-gate voltage, RGE = 20 kΩ:1200V; (3)Gate-emitter voltage:±20V; (4)DC collector current: TC = 25℃:145A,TC = 80℃:100A; (5)Pulsed collector current, tp = 1 ms:TC = 25℃:290A, TC = 80℃:200A; (6)Power dissipation per IGBT:700W; (7)Chip temperature:+150℃; (8)Storage temperature:-40℃ to +125℃.

Features

BSM100GB120DN2K features: (1)Half-bridge; (2)Including fast free-wheeling diodes; (3)Package with insulated metal base plate.

Diagrams

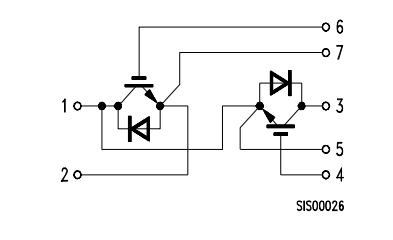

BSM100GB120DN2K circuit diagram
