Product Summary
The AMS1117-3.3 of adjustable and fixed voltage regulator is designed to provide up to1A output current and to operate down to 1V input-to-output differential. The dropout voltage of the AMS1117-3.3 is guaranteed maximum 1.3V, decreasing at lower load currents.
Parametrics
AMS1117-3.3 absolute maximum ratings: (1)Input Voltage: 15V; (2)Lead Temperature (25 sec): 265℃; (3)Operating Junction Temperature Range, Control Section: -40℃ to 125℃; (4)Operating Junction Temperature Range, Power Transistor -40℃ to 125℃; (5)Storage temperature: -65℃ to +150℃; (6)Thermal Resistance, TO-252 package, φja: 80℃/W.
Features
AMS1117-3.3 features: (1)Three Terminal Adjustable or Fixed Voltages; (2)Output Current of 1A; (3)Operates Down to 1V Dropout; (4)Line Regulation: 0.2% Max; (5)Load Regulation: 0.4% Max; (6)SOT-223, TO-252 and SO-8 package available.

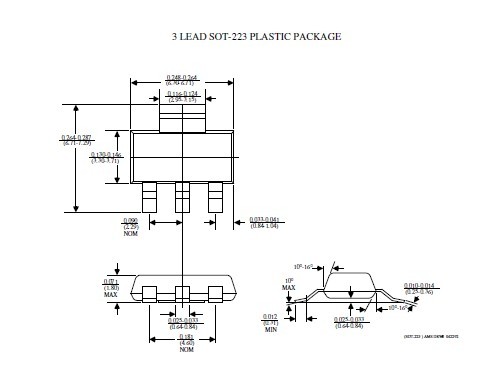

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
AMS1117-3.3 |
Other |
Data Sheet |
Negotiable |
|
||||||||||||||
