Product Summary

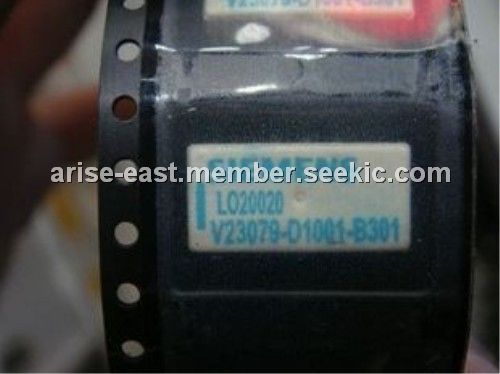

The V23079-D1001-B301 is a p2 relay.

Parametrics

V23079-D1001-B301 absolute maximum ratings: (1) Maximum switching capacity: 60W, 62.5A; (2) Thermoelectric potential: < 10 mV; (3) Minimum switching voltage: 100 mV; (4) Initial contact resistance / measuring condition: 10 mA / 20 mV: < 50 mW.

Features

V23079-D1001-B301 features: (1) Standard telecom relay (ringing and test access); (2) Slim line 15 x 7.5 mm, 0.590 x 0.295 inch; (3) Switching current 5 A; (4) 2 changeover contacts (2 form C / DPDT); (5) Bifurcated contacts; (6) Immersion cleanable; (7) High sensitivity results in low nominal power consumption140 mW for non-latching and latching with 2 coils70 mW for latching with 1 coil.

Diagrams

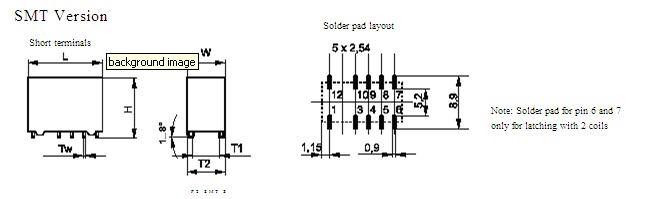

V23079-D1001-B301 dimension
