Product Summary

The BQ29412DCTR is a secondary overvoltage protection IC for 2-cell lithium-ion battery packs that incorporates a high-accuracy precision overvoltage detection circuit. The BQ29412DCTR includes a programmable delay Threshold circuit for overvoltage detection time.

Parametrics

BQ29412DCTR absolute maximum ratings: (1)Supply voltage range, VDD: -0.3V to 28V; (2)Input voltage range, VC1, VC2, VC3, VC4: -0.3V to 28V; (3)Input voltage range, VC1 TO VC2, VC2 TO VC3, VC3 TO VC4, VC4 TO GND: -0.3V to 28V; (4)Output voltage range, OUT: -0.3V to 28V; (5)Output voltage range, CD: -0.3V to 28V; (6)Storage temperature range, Tstg: -65℃ to 150℃; (7)Lead temperature (soldering, 10 s): 300℃.

Features

BQ29412DCTR features: (1)2-Cell Secondary Protection; (2)Low Power Consumption ICC < 2 μA ; (3)Fixed High Accuracy Overvoltage Protection ; (4)Programmable Delay Time of Detection; (5)High Power Supply Ripple Rejection; (6)Stable During Pulse Charge Operation.

Diagrams

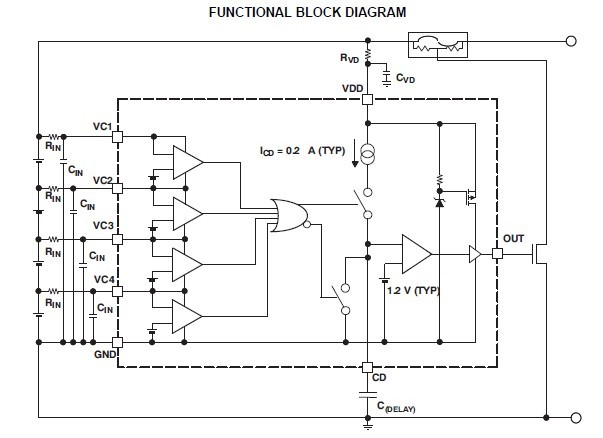

BQ29412DCTR FUNCTIONAL BLOCK DIAGRAM
