Product Summary

The UMZ1NTR is a NPN / PNP epitaxial planar silicon transistor.

Parametrics

UMZ1NTR absolute maximum ratings (Ta = 25℃): (1)Collector-base voltage, VCBO: 60 V; (2)Collector-emitter voltage, VCEO: 50v; (3)Emitter-base voltage, VEBO: 7v; (4)Collector current, IC: 150mA; (5)Power dissipation, PC: 150 (TOTAL)mW; (6)Junction temperature, Tj: 150℃; (7)Storage temperature, Tstg: -55 to +150℃.

Features

UMZ1NTR features: (1)Both a 2SA1037AK chip and 2SC2412K chip in a EMT or UMT or SMT package; (2)Mounting possible with EMT3 or UMT3 or SMT3 automatic mounting machines; (3)Transistor elements are independent, eliminating interference; (4)Mounting cost and area can be cut in half.

Diagrams

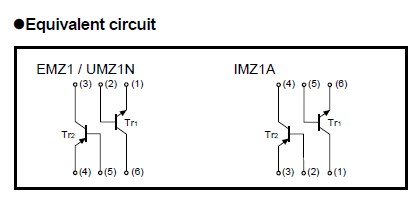

UMZ1NTR equivalent circuit

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
UMZ1NTR
UMZ1NTR

ROHM Semiconductor

Transistors Bipolar (BJT) NPN/PNP 50V 150MA SOT-363

Data Sheet

0-1: $0.22
1-25: $0.15
25-100: $0.10
100-500: $0.06
