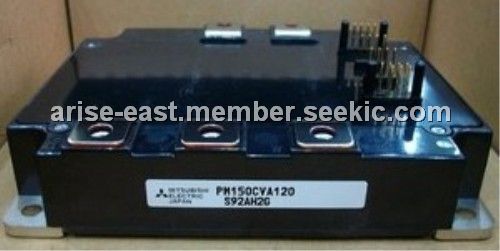

The PM150CVA120 is an IGBT module. The PM150CVA120 is isolated base modules designed for power switching applications operating at frequencies to 20kHz. Built-in control circuits provide optimum gate drive and protection for the IGBT and free-wheel diode power device.
Parametrics
PM150CVA120 absolute maximum ratings: (1)Power Device Junction Temperature Tj: -20 to 150 °C; (2)Storage Temperature Tstg: -40 to 125 °C; (3)Case Operating Temperature TC: -20 to 100 °C; (4)Mounting Torque, M5 Mounting Screws: 2.5 ~ 3.5 N · m; (5)Mounting Torque, M5 Main Terminal Screws: 2.5 ~ 3.5 N · m; (6)Module Weight (Typical): 1000 Grams; (7)Supply Voltage (Applied between P - N)VCC(surge): 1000 Volts; (8)Supply Voltage Protected by SC (VD = 13.5 ~16.5V, Inverter Part, Tj = 125°C Start)VCC(prot.): 800 Volts; (9)Isolation Voltage (Main Terminal to Baseplate, AC 1 min.)Viso: 2500 Vrms.
Features
PM150CVA120 features: (1)Complete Output Power Circuit; (2)Gate Drive Circuit; (3)Protection Logic: Short Circuit, Over Temperature, Under Voltage.
