Product Summary

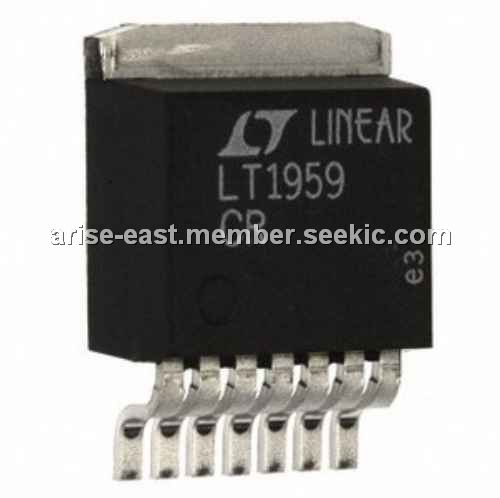

The LT1959CR is a 500kHz monolithic buck mode switching regulator functionally identical to the LT1506 but optimized for lower output voltage applications. It will operate down to 1.21V output compared to 2.42V for the LT1506. The 4.5A switch LT1959CR is included on the die along with all the necessary oscillator, control and logic circuitry. High switching frequency allows a considerable reduction in the size of external components. The topology of the LT1959CR is current mode for fast transient response and good loop stability.
Parametrics
LT1959CR absolute maximum ratings: (1)Input Voltage: 16V; (2)BOOST Voltage: 30V; (3)BOOST Pin Above Input Voltage: 15V; (4)SHDN Pin Voltage: 7V; (5)FB Pin Voltage: 3.5V; (6)FB Pin Current:1mA; (7)SYNC Pin Voltage: 7V; (8)Operating Junction Temperature Range: 0℃ to 125℃; (9)Storage Temperature Range: – 65℃ to 150℃; (10)Lead Temperature (Soldering, 10 sec): 300℃.
Features
LT1959CR features: (1)Operates with Input as Low as 4V; (2)Output Range Dowto 1.21V; (3)Constant 500kHz Switching Frequency; (4)Uses All Surface Mount Components; (5)Inductor Size Reduced to 1.8mH; (6)Saturating Switch Design: 0.07W; (7)ShutdowCurrent: 15mA; (8)Easily Synchronizable; (9)Cycle-by-Cycle Current Limiting; (10)4.5A Switch; (11)Current Mode Control.

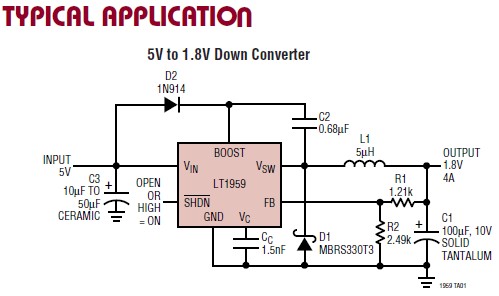

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LT1959CR |
|
IC REG BUCK ADJ 4.5A D2PAK |
Data Sheet |
|
|
||||||||||
|
LT1959CR#PBF |
|
IC REG BUCK ADJ 4.5A D2PAK |
Data Sheet |
|
|
||||||||||
|
LT1959CR#TR |
|
IC REG BUCK ADJ 4.5A D2PAK |
Data Sheet |
|
|
||||||||||
|
LT1959CR#TRPBF |
|
IC REG BUCK ADJ 4.5A D2PAK |
Data Sheet |
|
|
||||||||||
