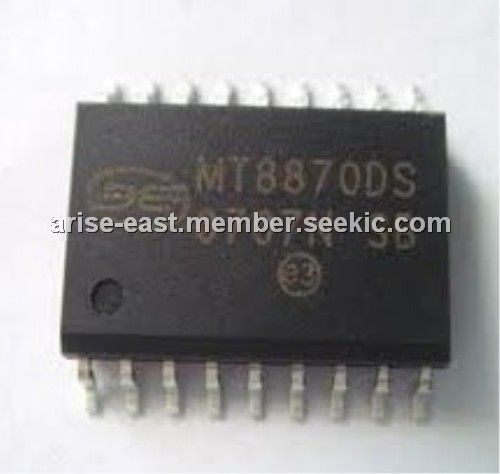

Product Summary
The MT8870DS is a ISO2-CMOS integrated DTMF receiver integrating both the bandsplit filter and digital decoder functions. The MT8870DS filter section uses switched capacitor techniques for high and low group filters; the MT8870DS decoder uses digital counting techniques to detect and decode all 16 DTMF tonepairs into a 4-bit code. External component count is minimized by on chip provision of a differential input amplifier, clock oscillator and latched three-state bus interface.
Parametrics
MT8870DS absolute maximum ratings: (1) DC Power Supply Voltage VDD: 7 V; (2) Voltage on any pin VI: VSS－0.3 VDD+0.3 V; (3) Current at any pin (other than supply) II: 10 mA; (4) Storage temperature TSTG: －65 +150 °C; (5) Package power dissipation PD: 500 mW.
Features
MT8870DS features: (1) Complete DTMF Receiver; (2) Low power consumption; (3) Internal gain setting amplifier; (4) Adjustable guard time; (5) Central office quality; (6) Power-down mode; (7) Inhibit mode; (8) Backward compatible with MT8870C/MT8870C-1.

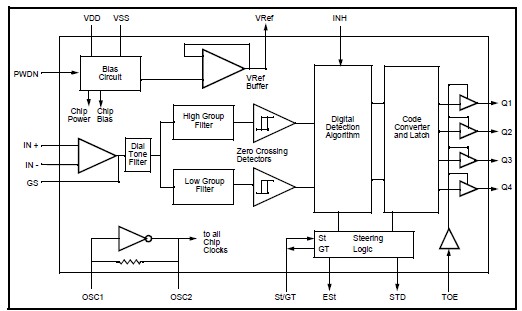

Diagrams
