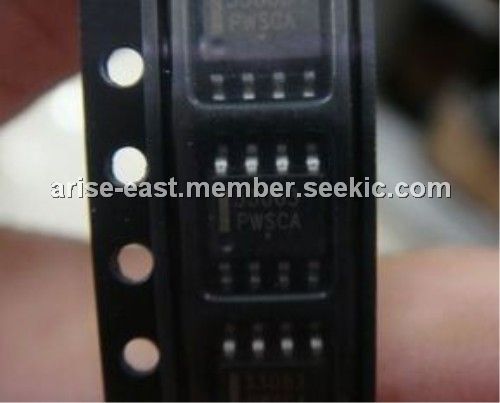

Product Summary
The MC33063ADR2G is an inverting switching regulator. The MC33063ADR2G is a monolithic control circuit containing the primary functions required for DC to DC converters. The MC33063ADR2G consists of an internal temperature compensated reference, comparator, controlled duty cycle oscillator with an active current limit circuit, driver and high current output switch. This series was specifically designed to be incorporated in Step-Down and Step Up and Voltage Inverting applications with a minimum number of external components. Refer to Application Notes AN920A/D and AN954/D for additional design information.
Parametrics
MC33063ADR2G absolute maximum ratings: (1)Power Supply Voltage VCC: 40 Vdc; (2)Comparator Input Voltage Range VIR:-0.3 to +40 Vdc; (3)Switch Collector Voltage VC(switch): 40 Vdc; (4)Switch Emitter Voltage (VPin 1 = 40 V)VE(switch): 40 Vdc; (5)Switch Collector to Emitter Voltage VCE(switch): 40 Vdc; (6)Driver Collector Voltage VC(driver): 40 Vdc; (7)Driver Collector Current (Note 1)IC(driver): 100 mA; (8)Switch Current ISW: 1.5 A; (9)TA = 25℃ PD: 1.25 W; (10)Thermal Resistance RJA: 100 ℃/W; (11)SOIC Package, D Suffix; (12)TA = 25℃ PD: 625 mW; (13)Thermal Resistance RθJA: 160 ℃/W; (14)Operating Junction Temperature TJ: +150 ℃.
Features
MC33063ADR2G features: (1)Operation from 3.0 V to 40 V Input; (2)Low Standby Current; (3)Current Limiting; (4)Output Switch Current to 1.5 A; (5)Output Voltage Adjustable; (6)Frequency Operation to 100 kHz; (7)Precision 2% Reference; (8)Pb Free Packages are Available.

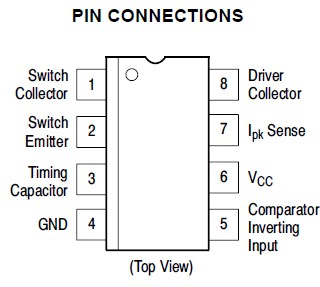

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MC33063ADR2G |
ON Semiconductor |
Switching Converters, Regulators & Controllers 40V 1.5A Buck/Boost/Inverting |
Data Sheet |
|
|
||||||||||||
