Product Summary

The MAX2118UTL is a Complete DBS Direct-Conversion Tuner IC. The MAX2118UTL downconvert RF signals in the 925MHz to 2175MHz range directly to baseband I/Q signals.They are targeted for digital DBS tuner applications.However, the MAX2118UTL is applicable to anysystem requiring a broadband I/Q downconversion. The MAX2118UTL includes completely monolithicVCOs to cover the entire 925MHz to 2175MHz frequencyrange. The complete frequency range is coveredwithin a 5V tuning range, thus eliminating the need forcostly 30V supplies and varactor diodes. The VCOarchitecture also eliminates problems associated withfrequency pulling with high receive inputsignal levels.

Parametrics

MAX2118UTL Absolute maximum ratings: (1)VCC to GND -0.3V to +5.5V; (2)All Other Pins to GND -0.3V to (VCC + 0.3V); (3)RFIN+ to RFIN-, XTL+ to XTL-, IDC+ to IDC-,QDC+ to QDC- ±2.0V; (4)CNTOUT, XTALOUT, CPOUT, VREG1/2, I/QOUT± to GND Short-Circuit Duration 10s; (5)Continuous Current (any pin other than VCC or GND) 10mA.

Features

MAX2118UTL features:(1)Fully Integrated VCOs; (2)Supports 1Mbaud to 45Mbaud, 925MHz to 2175MHz Operation; (3)4MHz to 33MHz Tunable LP Filters; (4)Complete Synthesizer with I2CTM; Interface; (5)Analog RF VGA and Digital Baseband VGA; (6)Multiple I2C Addresses for Multituner Applications; (7)Single-Ended (MAX2116)and Differential (MAX2118)I/Q Interface.

Diagrams

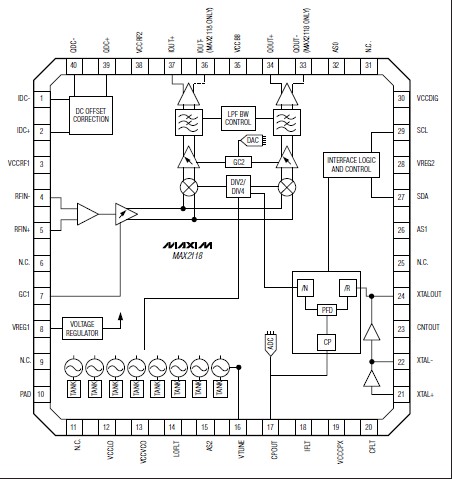

 MAX2118UTL pin configuration

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
MAX2118UTL+
MAX2118UTL+

Maxim Integrated Products

Tuners

Data Sheet

Negotiable
MAX2118UTL+D
MAX2118UTL+D

Maxim Integrated Products

Tuners

Data Sheet

Negotiable
MAX2118UTL+TD
MAX2118UTL+TD

Maxim Integrated Products

Tuners

Data Sheet

Negotiable
MAX2118UTL-T
MAX2118UTL-T

Maxim Integrated Products

Tuners

Data Sheet

Negotiable
MAX2118UTL+T
MAX2118UTL+T

Maxim Integrated Products

Tuners

Data Sheet

Negotiable
MAX2118UTL
MAX2118UTL

Maxim Integrated Products

Tuners

Data Sheet

Negotiable
