Product Summary

The APT60D120BG is an ultrafast soft recovery rectifier diode. It is suitable for Anti-Parallel Diode, Switchmode Power Supply, Inverters, Free Wheeling Diode, Motor Controllers, Converters, Inverters, Snubber Diode and PFC.

Parametrics

APT60D120BG absolute maximum ratings: (1)Maximum D.C. Reverse Voltage, VR: 1200Volts; (2)Maximum Peak Repetitive Reverse Voltage, VRRM: 1200Volts; (3)Maximum Working Peak Reverse Voltage, VRWM: 1200Volts; (4)Maximum Average Forward Current, IF(AV): 60A; (5)RMS Forward Current (Square wave, 50% duty), IF(RMS): 115A; (6)Non-Repetitive Forward Surge Current, IFSM: 540A; (7)Operating and StorageTemperature Range, Tj, Tstg: -55 to 175℃; (8)Lead Temperature for 10 Sec, TL: 300℃.

Features

APT60D120BG features: (1)Ultrafast Recovery Times; (2)Soft Recovery Characteristics; (3)Popular TO-247 Package or Surface Mount D3 PAK Package; (4)Low Forward Voltage; (5)Low Leakage Current.

Diagrams

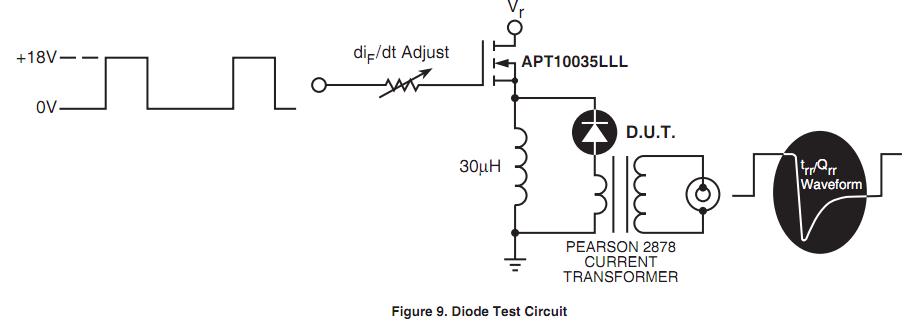

APT60D120BG test circuit

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

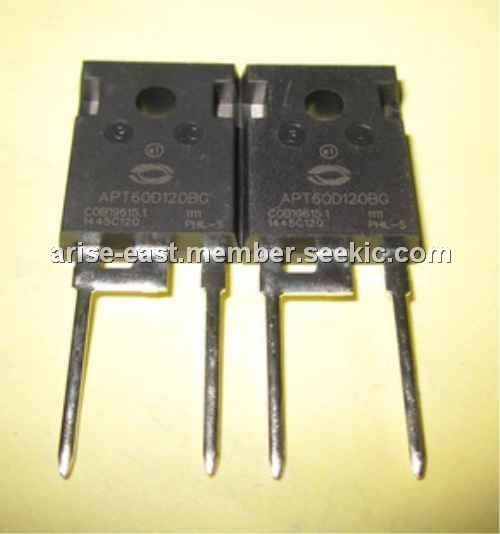

APT60D120BG
APT60D120BG

DIODE ULT FAST 60A 1200V TO-247
Data Sheet
0-1: $4.52
1-10: $4.07
10-100: $3.35
100-250: $3.08
250-500: $2.81
500-1000: $2.44
1000-2500: $2.35
2500-5000: $2.26
5000-10000: $2.22
