Product Summary

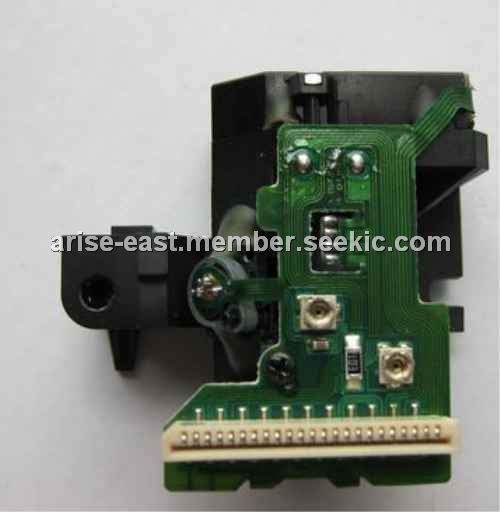

The PVR-202T is a optical pick-up for DVD/CD-ROM drives that support CD-R/RW read.
Parametrics
PVR-202T absolute maximum ratings: (1)Tracking Sensitivity: 0.80mm/V; (2)Tracking Resonance Frequency: 47Hz; (3)Focusing Sensitivity: 1.50mm/V; (4)Focusing Resonance Frequency: 42Hz; (5)RF Signal, DVD: 1.74Vp-p; (6)RF Signal, CD: 0.75Vp-p; (7)Tracking Error Signal, DVD: 2.1V; (8)Tracking Error Signal, CD: 0.14V; (9)Focusing Error Signal, DVD: 0.82V; (10)Focusing Error Signal, CD 0.42V; (11)Exterior Dimension: 29.7 (W) 42.5 (D) 40.5(H)mm.
Features
PVR-202T features: (1)Compatible with CD-R/RW (recordable and rewritable); (2)Utilizes high-sensitivity actuator; (3)Tracking error signal detection: DVD: 1-beam method, CD: 3-beam method; (4)Astigmatic method adopted for focus error signal detection.
 |
