Product Summary

Suitable for AC switching operations, the BTA06-600C 6A TRIAC can be used as an ON/OFF function in applications such as static relays, heating regulation, induction motor starting circuits or for phase control in light dimmers, motor speed controllers. The snubberless and logic level versions of the BTA06-600C are specially recommended for use on inductive loads, thanks to their high commutation performances. By using an internal ceramic pad, the BTA06-600C provides voltage insulated tab (rated at 2500V RMS) complying with UL standards (File ref.: E81734).

Parametrics

BTA06-600C absolute maximum ratings:(1)RMS on-state current (full sine wave), TO-220AB Tc = 110℃, IT(RMS): 6A; (2)RMS on-state current (full sine wave), TO-220AB Ins. Tc = 105℃, IT(RMS): 6A; (3)Non repetitive surge peak on-state current (full cycle, Tj initial = 25℃), F = 50 Hz t = 20 ms, ITSM: 60A; (4)Non repetitive surge peak on-state current (full cycle, Tj initial = 25℃), F = 60 Hz t = 16.7ms, ITSM: 63; (5)I2t Value for fusing, tp = 10 ms, I2t: 21A2s; (6)Critical rate of rise of on-state current, IG = 2 x IGT , tr<100 ns, F = 120 Hz Tj = 125℃, dI/dt: 50A/μs; (7)Peak gate current, tp = 20 μs Tj = 125℃, IGM: 4A; (8)Average gate power dissipation, Tj = 125℃, PG(AV): 1W; (9)Storage junction temperature range, Tstg: - 40 to + 150℃; (10)Operating junction temperature range, Tj: - 40 to + 125℃.

Features

BTA06-600C features:(1)IT(RMS): 6A; (2)VDRM/VRRM: 600 and 800V; (3)IG (Q1): 5 to 50mA.

Diagrams

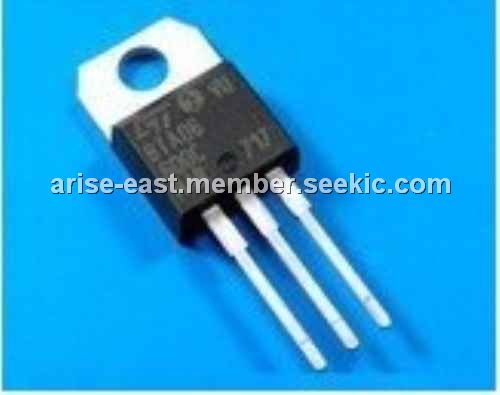

BTA06-600C diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
BTA06-600C
BTA06-600C

Other


Data Sheet

Negotiable
BTA06-600CRG
BTA06-600CRG

STMicroelectronics

Triacs 6 Amp 600 Volt

Data Sheet

0-1: $0.82
1-10: $0.65
10-100: $0.57
100-250: $0.50
BTA06-600CWRG
BTA06-600CWRG

STMicroelectronics

Triacs 6 Amp 600 Volt

Data Sheet

0-1: $0.77
1-10: $0.62
10-100: $0.54
100-250: $0.47
