AM29F040B-55JI

Product Summary

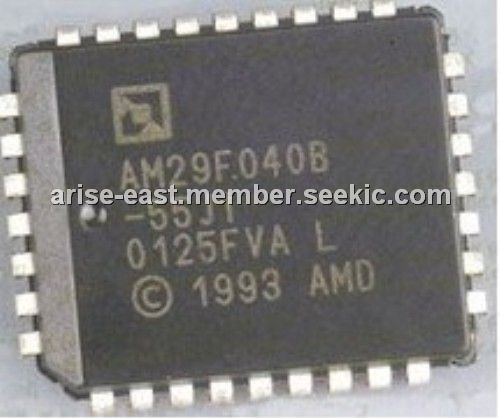

The AM29F040B-55JI is a uniform sector flash memory. The AM29F040B-55JI is a 4 Mbit, 5.0 volt-only Flash memory organized as 524,288 Kbytes of 8 bits each. The 512 Kbytes of data are divided into eight sectors of 64 Kbytes each for flexible erase capability. The 8 bits of data appear on DQ0–DQ7. The AM29F040B-55JI is offered in 32-pin PLCC, TSOP, and PDIP packages. The AM29F040B-55JI is designed to be programmed in-system with the standard system 5.0 volt VCC supply. A 12.0 volt VPP is not required for write or erase operations. The AM29F040B-55JI can also be programmed in standard EPROM programmers. This device is manufactured using AMD’s 0.32 μm process technology, and offers all the features and benefits of the AM29F040B-55JI, which was manufactured using 0.5 μm process technology. In addtion, the AM29F040B-55JI has a second toggle bit, DQ2, and also offers the ability to program in the Erase Suspend mode.

Parametrics

AM29F040B-55JI absolute maximum ratings(1)Storage Temperature Plastic Packages : –65°C to +125°C; (2)Ambient Temperature with Power Applied: –55°C to +125°C; (3)Voltage with Respect to Ground VCC (Note 1): 2.0 V to 7.0 V; (4)A9, OE# (Note 2): 2.0 V to 12.5 V; (5)All other pins (Note 1): 2.0 V to 7.0 V; (6)Output Short Circuit Current (Note 3): 200 mA.

Features

AM29F040B-55JI features: (1)Minimum 1,000,000 program/erase cycles per sector guaranteed; (2)20-year data retention at 125°C: Reliable operation for the life of the system; (3)Package options: 32-pin PLCC, TSOP, or PDIP; (4)Compatible with JEDEC standards: Pinout and software compatible with single-power-supply Flash standard, Superior inadvertent write protection; (5)Data# Polling and toggle bits: Provides a software method of detecting program or erase cycle completion; (6)5.0 V ± 10% for read and write operations: Minimizes system level power requirements; (7)Manufactured on 0.32 μm process technology: Compatible with 0.5 μm Am29F040 device; (8)High performance: Access times as fast as 55 ns.
