The 2N3055 is a silicon Epitaxial-Base Planar NPN transistor mounted in Jedec TO-3 metal case. It is intended for power switching circuits, series and shunt regulators, output stages and high fidelity amplifiers. The complementary PNP type is MJ2955.
Parametrics
2N3055 absolute maximum ratings: (1)VCBO Collector-Base Voltage (IE = 0): 100 V; (2)VCER Collector-Emitter Voltage (RBE£ 100W): 70 V; (3)VCEO Collector-Emitter Voltage (IB = 0): 60 V; (4)VEBO Emitter-Base Voltage (IC = 0): 7 V; (5)IC Collector Current: 15 A; (6)IB Base Current: 7 A; (7)Ptot Total Dissipation at Tc £ 25 oC: 115 W; (8)Tstg Storage Temperature: -65 to 200 ℃ ; (9)Tj Max. Operating Junction Temperature: 200 ℃ .
Features
2N3055 features: (1)STMicroelectronics PREFERRED SALESTYPES; (2)COMPLEMENTARY NPN-PNP DEVICES.

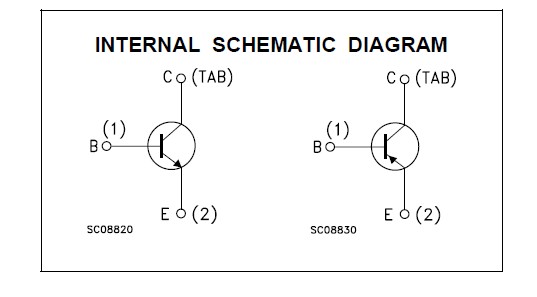

Diagrams
