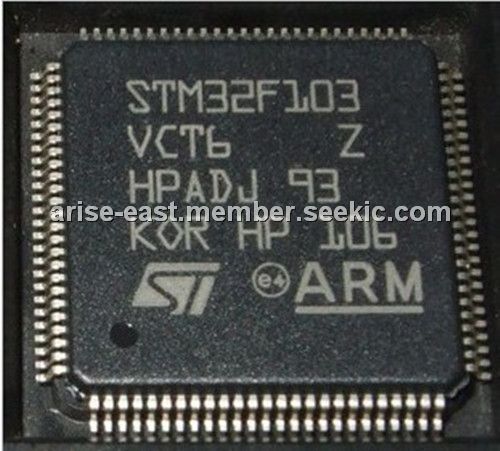

Product Summary
The STM32F103VCT6 is a performance line microcontroller. This datasheet provides the ordering information and mechanical device characteristic of the STM32F103VCT6 high-density performance line microcontroller. For information on programming, erasing and protection of the internal Flash memory please refer to the STM32F103VCT6 Flash programming manual. The reference and Flash programming manuals are both available from the STMicroelectronics website www.st.com. For information on the Cortex-M3 core please refer to the Cortex-M3 Technical Reference Manual, available from the www.arm.com website at the following address:http://infocenter.arm.com/help/index.jsp topic=/com.arm.doc.ddi0337e/.
Parametrics
STM32F103VCT6 absolute maximum ratings: (1)VDD–VSS External main supply voltage (including VDDA and VDD)(1): –0.3, 4.0V; (2)VIN Input voltage on five volt tolerant pin(2): VSS-0.3, +5.5V; (3)VIN Input voltage on any other pin(2): VSS-0.3, VDD+0.3V; (4)|VDDx| Variations between different VDD power pins: 50mV; (5)|VSSX-VSS| Variations between all the different ground pins: 50mV.
Features
STM32F103VCT6 features: (1)Core: ARM 32-bit Cortex-M3 CPU: 72 MHz maximum frequency, 1.25 DMIPS/MHz (Dhrystone 2.1)performance at 0 wait state memory access, Single-cycle multiplication and hardware division; (2)Memories: 256 to 512 Kbytes of Flash memory, up to 64 Kbytes of SRAM, Flexible static memory controller with 4 Chip Select. Supports Compact Flash, SRAM, PSRAM, NOR and NAND memories, LCD parallel interface, 8080/6800 modes; (3)Up to 112 fast I/O ports: 51/80/112 I/Os, all mappable on 16 external interrupt vectors and almost all 5 V-tolerant; (4)2 × 12-bit D/A converters; (5)DMA: 12-channel DMA controller: Supported peripherals: timers, ADCs, DAC, SDIO, I2Ss, SPIs, I2Cs and USARTs; (6)Debug mode: Serial wire debug (SWD)& JTAG interfaces, Cortex-M3 Embedded Trace Macrocell.

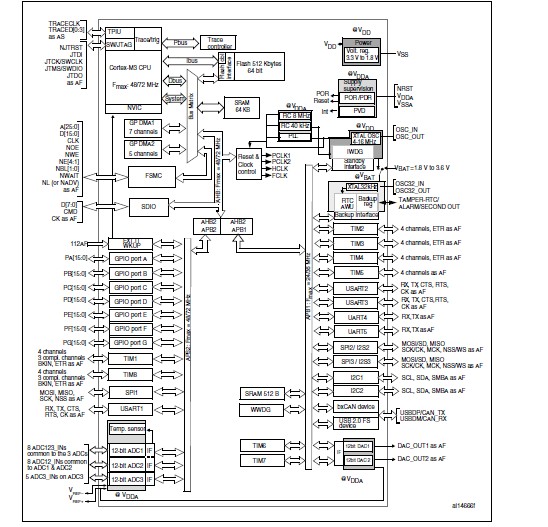

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 STM32F103VCT6 |
STMicroelectronics |
ARM Microcontrollers (MCU) 32BIT Cortex M3 H/D 259 to 512 USB/CAN |
Data Sheet |
|
|
||||||||||||
|
STM32F103VCT6TR |
STMicroelectronics |
ARM Microcontrollers (MCU) 32-Bit Cortex 64Kb Performance Line |
Data Sheet |
|
|
||||||||||||
