Product Summary

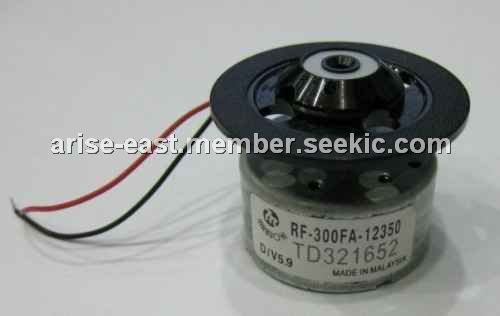

The RF-300FA-12350 is a torque up type precious metal-brush motor.
Parametrics
RF-300FA-12350 absolute maximum ratings: (1)operating range: 1.5 to 6.0V; (2)nominal: 3V constant; (3)speed: 3500r/min; (4)current, no load: 0.022A; (5)speed: 2830r/min; (6)current, at maximum efficiency: 0.093A; (7)output: 0.14W; (8)current: 0.39A.

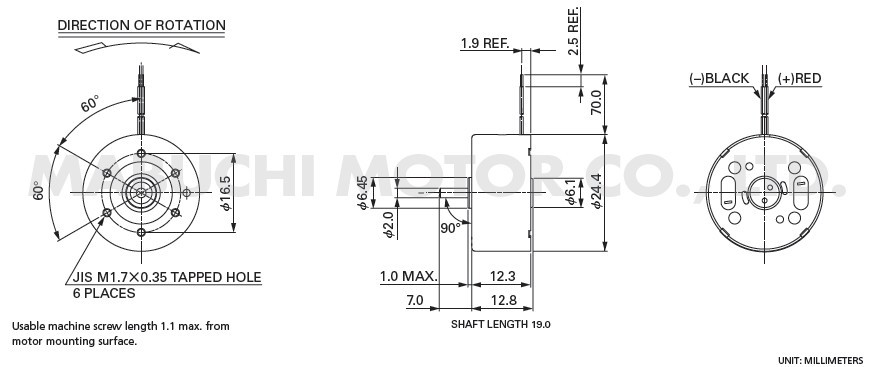

Diagrams
