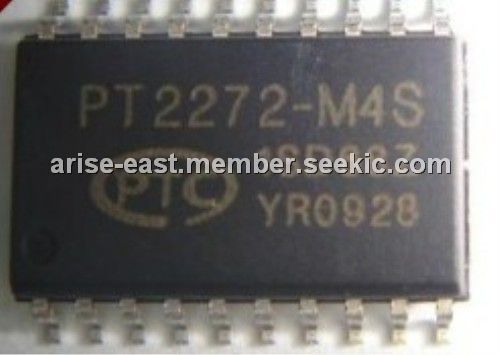

Product Summary
The PT2272-M4S is a remote control decoder paired with the PT2262-M4S utilizing CMOS Technology. The PT2272-M4S has 12-bit of tri-state address pins providing a maximum of 531,441 (or 312) address codes; thereby, drastically reducing any code collision and unauthorized code scanning possibilities. PT2272-M4S is available in several options to suit every application need: variable number of data output pins, latch or momentary output type.
Parametrics
PT2272-M4S absolute maximum ratings: (1)Supply Voltage, VCC: -0.3 ~ 16.0 V; (2)Input Voltage, VI: -0.3 ~ VCC+0.3 V; (3)Output Voltage, VO: -0.3 ~ VCC+0.3 V; (4)Operating Temperature, Topr: -40 ~ +85 ℃; (5)Storage Temperature, Tstg: -65 ~ 150 ℃.
Features

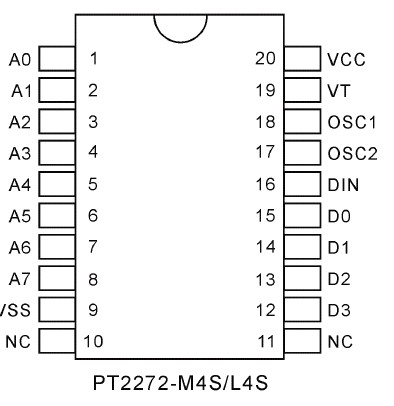

PT2272-M4S features: (1)CMOS Technology; (2)Low Power Consumption; (3)Very High Noise Immunity; (4)Up to 12 Tri-State Code Address Pins; (5)Up to 6 Data Pins; (6)Wide Range of Operating Voltage: VCC=4~15V; (7)Single Resistor Oscillator; (8)Latch or Momentary Output Type; (9)Available in DIP and SOP.
