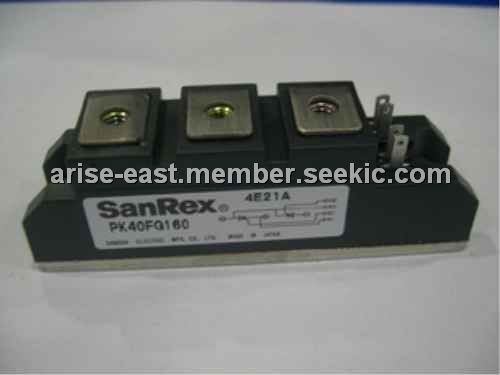

The PK40FG160 is a thyristor module. Power Thyristor/Diode Module PK40FG160 is designed for various rectifier circuits and power controls. For your circuit application, following internal connections and wide voltage ratings up to 1600V are available and electrically isolated mounting base of the PK40FG160 make your mechanical design easy.
Parametrics
PK40FG160 absolute maximum ratings: (1)VRRM Repetitive Peak Reverse Voltage: 1600V; (2)VRSM Non-Repetitive Peak Reverse Voltage: 1700V; (3)VDRM Repetitive Peak off-state Voltage: 1600V; (4)PGM Peak Gate Power Dissipation: 10W; (5)PG(AV)Average Gate Power Dissipation: 1W; (6)IFGM Peak Gate Current: 3A; (7)VFGM Peak Gate Voltage (Forward): 10V.
Features
PK40FG160 features: (1)IT(AV) 40A, IT(RMS) 62A, ITSM 950A; (2)di/dt 100A/μs; (3)dv/dt 1000V/μs.
