Product Summary

The NJM2267M is a dual video 6dB amplifier with 75Ω drivers for SVHS VCRs, HI-BAND VCRs, etc..Each channel has clamp function that fixes DC level of video sighal and 75Ω drivers to be connected to TV monitors directly. Further more the NJM2267M has sag corrective circuits that prevent the generation of sag with smaller capacitance than ever. Its operating supply voltage is 4.85 to 9V and bandwidth is 7MHz. The applications of the NJM2267M include: VCR, video camera, TV, video disc player.

Parametrics

NJM2267M absolute maximum ratings: (1)Supply voltage V: 10V; (2)Power dissipation PD: (DIP8) 500mW; (DMP8): 300mW; (SSOP8): 250mW; (3)Operating temperature range Topr: -40~+85℃; (4)Storage temperature range Tstg: -40~+125℃.

Features

NJM2267M features: (1)Wide operating voltage(4.85~9.0V); (2)Dual channel; (3)Internal clamp function; (4)Internal driver circuit for 75Ω load; (5)SAG corrective function; (6)Wide frequency range(7MHz); (7)Low operating current 14.0mA(dual); (8)Package outline DIP8, DMP8, SSOP8; (9)Bipolar technology.

Diagrams

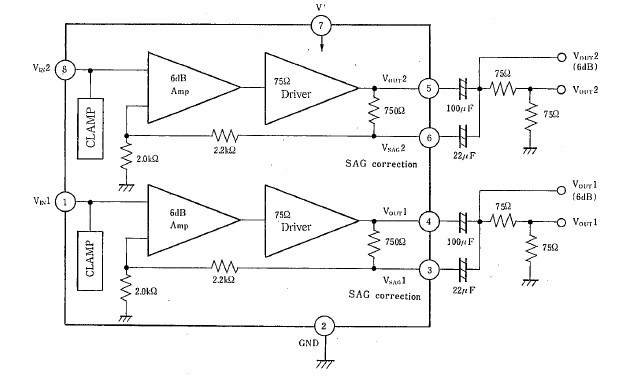

NJM2267M block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

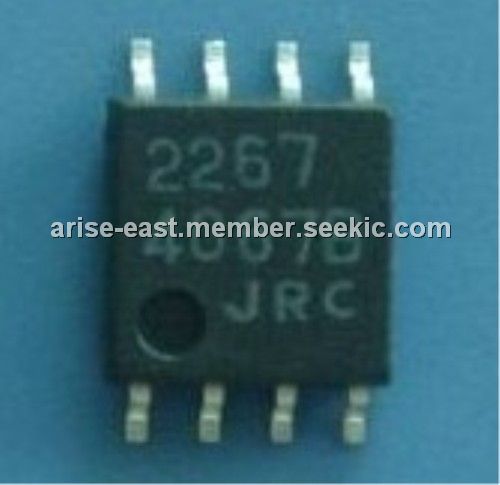

NJM2267M
NJM2267M

NJR

Video Amplifiers Dual 6dB Vid Amp

Data Sheet

0-1: $0.48
1-25: $0.43
25-100: $0.38
100-250: $0.35
NJM2267M#
NJM2267M#

NJR

IC VIDEO AMP DUAL W/DVR 8-DMP

Data Sheet

1-25: $0.36
25-100: $0.29
NJM2267M-T1
NJM2267M-T1

NJR

Video Amplifiers Dual 6dB Vid Amp

Data Sheet

Negotiable
NJM2267M-T2
NJM2267M-T2

NJR

Video Amplifiers Dual 6dB Vid Amp

Data Sheet

Negotiable
NJM2267M-TE1
NJM2267M-TE1

NJR

Video ICs Dual 6dB Vid Amp

Data Sheet

0-2000: $0.35
2000-6000: $0.32
6000-10000: $0.29
10000-26000: $0.28
NJM2267M-TE2
NJM2267M-TE2

NJR

Video ICs Dual 6dB Vid Amp

Data Sheet

0-2000: $0.35
2000-6000: $0.32
6000-10000: $0.29
10000-26000: $0.28
NJM2267M-TE3
NJM2267M-TE3

NJR

Video ICs Dual 6dB Vid Amp

Data Sheet

0-2000: $0.31
2000-4000: $0.30
