Product Summary

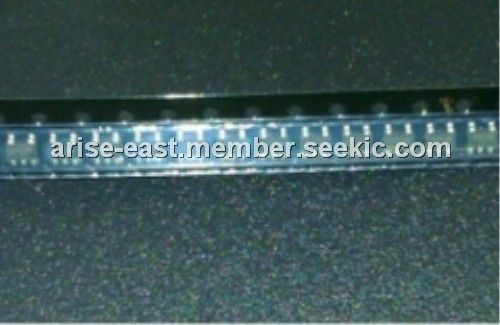

The NC7SZ00M5X is a single 2-Input NAND Gate from Fairchild’s Ultra High Speed Series of TinyLogic. The NC7SZ00M5X is fabricated with advanced CMOS technology to achieve ultra high speed with high output drive while maintaining low static power dissipation over a broad VCC operating range. The NC7SZ00M5X is specified to operate over the 1.8V to 5.5V VCC operating range. The inputs and output are high impedance when VCC is 0V. Inputs tolerate voltages up to 6V independent of VCC operating voltage.

Parametrics

NC7SZ00M5X absolute maximum ratings: (1)Supply Voltage (VCC): -0.5V to +6V; (2)DC Input Voltage (VIN): -0.5V to +6V; (3)DC Output Voltage (VOUT): -0.5V to +6V; (4)DC Input Diode Current (IIK) @VIN < -0.5V: -50 mA; @ VIN > 6V: +20 mA; (5)DC Output Diode Current (IOK) @VOUT < -0.5V: -50 mA; @ VOUT > 6V, VCC = GND: +20 mA; (6)DC Output Current (IOUT): ± 50 mA; (7)DC VCC/GND Current (ICC/IGND): ± 50 mA; (8)Storage Temperature (TSTG): -65 to +150℃; (9)Junction Temperature under Bias (TJ): 150℃; (10)Junction Lead Temperature (TL); (Soldering, 10 seconds): 260℃; (11)Power Dissipation (PD): 200 mW.

Features

NC7SZ00M5X features: (1)Space saving SOT23 or SC70 5-lead package; (2)Ultra High Speed; tPD 2.4 ns typ into 50 pF at 5V VCC; (3)High Output Drive; ±24 mA at 3V VCC; (4)Broad VCC Operating Range; 1.8V–5.5V; (5)Matches the performance of LCX when operated at 3.3V VCC; (6)Power down high impedance inputs/output; (7)Overvoltage tolerant inputs facilitate 5V to 3V translation; (8)Patented noise/EMI reduction circuitry implemented.

Diagrams

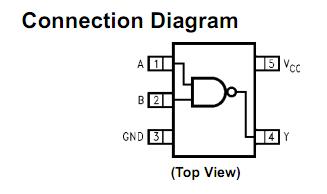

NC7SZ00M5X connection diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
NC7SZ00M5X
NC7SZ00M5X

Fairchild Semiconductor

Gates (AND / NAND / OR / NOR) UHS 2-Inp NAND Gate

Data Sheet

0-1: $0.26
1-25: $0.19
25-100: $0.11
100-250: $0.08
