Product Summary

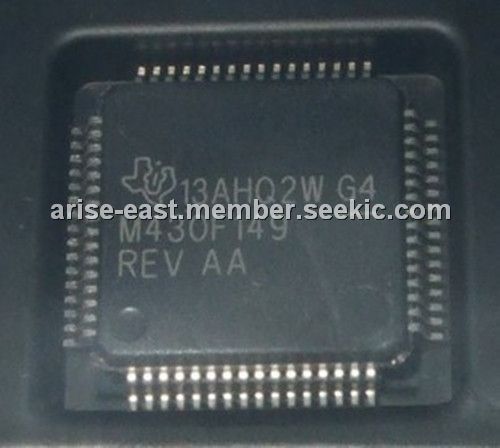

The MSP430F149IPMR is a mixed sinal microcontroller. The architecture, combined with five low power modes is optimized to achieve extended battery life in portable measurement applications. The MSP430F149IPMR features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that attribute to maximum code efficiency. The MSP430F149IPMR allows wake-up from low-power modes to active mode in less than 6 μs. The MSP430F149IPMR is microcontroller configuration with two built-in 16-bit timers, a fast 12-bit A/D converter,one or two universal serial synchronous/asynchronous communication interfaces (USART), and 48 I/O pins. Typical application includes sensor system that capture analog signals, convert them to digital values, and process and transmit the data to a host system. The timer makes the configuration ideal for industrial control application such as ripple counter, digital motor control, EE-meters, hand-held meters, etc. The hardware multiplier enhances the performance and offers a broad code and hardware-compatible family solution.
Parametrics
MSP430F149IPMR absolute maximum ratings: (1)Voltage applied at VCC to VSS: -0.3 V to + 4.1 V; (2)Voltage applied to any pin (see Note): -0.3 V to VCC+0.3 V; (3)Diode current at any device terminal: ±2 mA; (4)Storage temperature (unprogrammed device):－55°C to 150°C; (5)Storage temperature (programmed device): -40°C to 85°C.
Features
MSP430F149IPMR features: (1)Five Power-Saving Modes; (2)Wake-Up From Standby Mode in less than 6 μs; (3)16-Bit RISC Architecture, 125-ns Instruction Cycle Time; (4)12-Bit A/D Converter With Internal Reference, Sample-and-Hold and Autoscan Feature; (5)16-Bit Timer_B With Seven Capture/Compare-With-Shadow Registers; (6)16-Bit Timer_A With Three Capture/Compare Registers; (7)On-Chip Comparator; (8)Serial Onboard Programming, No External Programming Voltage Needed Programmable Code Protection by Security Fuse.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MSP430F149IPMR |
Texas Instruments |
16-bit Microcontrollers (MCU) 60 kB Flash 2KB RAM 12b ADC-2 USART-HW |
Data Sheet |
|
|
||||||||||||
|
MSP430F149IPMRG4 |
Texas Instruments |
16-bit Microcontrollers (MCU) 16 bit Ultra Lo Pwr |
Data Sheet |
|
|
||||||||||||
