Product Summary

The LA76818A is an I2C bus controller IC that supports the different TV broadcast fo rmats used worldwide and aim for rationalization of color TV set design, improved manufacturability, and lower total costs.

Features

LA76818A features: (1) Single crystal multiformat system that supports the different TV broadcast formats used worldwide Multiformat system : LA76818A (YCbCr support); (2) Adjustment-free VIF/SIF, audio trap/audio bandpass filters; (3) Adjustment-free horizontal resonator system; (4) Simplified SG; (5) Supply voltage : VCC = 5V/9V; (6) VIF/SIF: Adjustment-free VCO, 4-mode audio trap/audio bandpass filter, buzz canceller, RF AGC/video level, SIF system automatic discrimination (The LA7973 is used as the automatic discrimination IC.); (7) Single crystal color system: PAL, NTSC, SECAM (The LA7642N is used as the SECAM decoder.); (8) Black stretch, sharpness control with coring on/off control, built-in variable Y system filters(Y-DL and chrominance trap); (9) Chrominance bandpass filter, demodulation ratio and angle control.

Diagrams

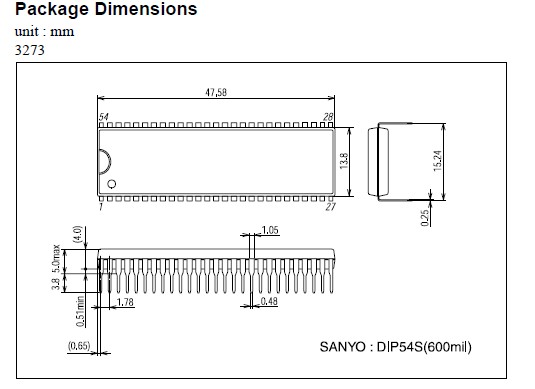

dimmension
