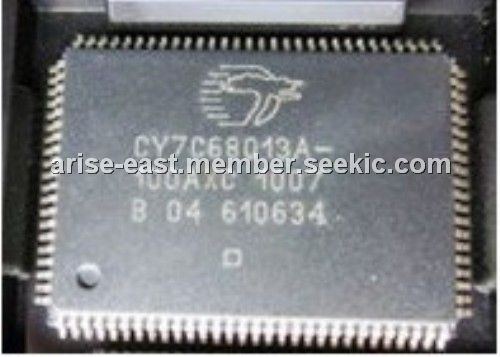

CY7C68013A-100AXC

ez-usb fx2lp usb microcontroller, 50 mA, 4.0V, TQFP-100

Rated 5 Rating 5 | reviews | Write a review

Price:: US $3.50~5.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $3.50~5.00

PartNumber:: CY7C68013A-100AXC

Brand:: Cypress Semiconductor - Cypress | Pack: TQFP | D/C: 12+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. abby's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-07-06

From Other Seller

Part Number:CY7C68013A-100AXC
US $3.50 - 5.00
ECA1HHG220

US $2.00 - 10.00 / Piece
(0) Remove
iphone5 data cable

US $4.00 - 5.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The CY7C68013A-100AXC is an ez-usb fx2lp usb microcontroller. CY7C68013A-100AXC operates at two of the three rates defined in the USB Specification Revision 2.0, dated April 27, 2000: Full speed, with a signaling bit rate of 12 Mbps, High speed, with a signaling bit rate of 480 Mbps. The CY7C68013A-100AXC does not support the low-speed signaling mode of 1.5 Mbps.The 8051 microprocessor embedded in the CY7C68013A-100AXC has 256 bytes of register RAM, an expanded interrupt system, three timer/counters, and two USARTs. The CY7C68013A-100AXC embedded in the CY7C68013A-100AXC has 256 bytes of register RAM, an expanded interrupt system, three timer/counters, and two USARTs.

Parametrics

CY7C68013A-100AXC absolute maximum ratings: (1)Storage Temperature: –65°C to +150°C; (2)Ambient Temperature with Power Supplied: 0°C to +70°C; (3)Supply Voltage to Ground Potential: -0.5V to +4.0V; (4)DC Input Voltage to Any Input Pin: 5.25V[15]; (5)DC Voltage Applied to Outputs in High Z State: –0.5V to VCC + 0.5V; (6)Power Dissipation: 300 mW; (7)Static Discharge Voltage: > 2000V; (8)Max Output Current, per I/O port: 10 mA; (9)Max Output Current, all five I/O ports (128- and 100-pin packages): 50 mA.

Features

CY7C68013A-100AXC features: (1) USB 2.0–USB-IF high speed certified (TID # 40440111); (2) Single-chip integrated USB 2.0 transceiver, smart SIE, and enhanced 8051 microprocessor; (3) Fit, form and function compatible with the FX2: Pin-compatible, Object-code-compatible, Functionally-compatible (FX2LP is a superset); (4) Ultra Low power: ICC no more than 85 mA in any mode: Ideal for bus and battery powered applications; (5) 3.3V operation with 5V tolerant inputs; (6) Vectored USB interrupts and GPIF/FIFO interrupts; (7) Separate data buffers for the Set-up and Data portions of a CONTROL transfer; (8) Integrated I2C controller, runs at 100 or 400 kHz.
