Product Summary
The AX88796LF is a Fast Ethernet Controller. It is a high performance and highly integrated local CPU bus Ethernet Controller with embedded 10/100Mbps PHY/Transceiver and 8K*16 bit SRAM. The AX88796LF supports both 8 bit and 16 bit local CPU interfaces include MCS-51 series, 80186 series, MC68K series CPU and ISA bus. The AX88796LF implements both 10Mbps and 100Mbps Ethernet function based on IEEE802.3 / IEEE802.3u LAN standard. The AX88796LF also provides an extra IEEE802.3u compliant media-independent interface (MII) to support other media applications. Using MII interface, Home LAN PHY type media can be supported. As well as, the chip also provides optional Standard Print Port ( parallel port interface ), can be used for printer server device or treat as simple general I/O port. The chip also support upto 3/1 additional General Purpose In/Out pins.
Parametrics
AX88796LF absolute maximum ratings: (1)Operating Temperature Ta: 0_+85 °C; (2)Storage Temperature Ts: -55_+150 °C; (3)Supply Voltage Vdd: -0.3_+4.6 V; (4)Input Voltage Vin: -0.3_5.5* V; (5)Output Voltage Vout: -0.3_ Vdd+0.5 V; (6)Lead Temperature (soldering 10 seconds maximum)Tl: -55 _+220 °C.
Features
AX88796LF features: (1) External and internal loop-back capability; (2) Support Standard Print Port for printer server application; (3)Support upto 3/1 General Purpose In/Out pins; (4)128-pin LQFP low profile package; (5) Low Power Consumption, typical under 100mA; (6) Support both 10Mbps and 100Mbps data rate; (7) Support both full-duplex or half-duplex operation; (8) Provides an extra MII port for supporting other media. For example, Home LAN application; (9) Support EEPROM interface to store MAC address; (10) NE2000 register level compatible instruction; (11) Single chip local CPU bus 10/100Mbps Fast Ethernet MAC Controller; (12) Support both 8 bit and 16 bit local CPU interfaces include MCS-51 series, 80186 series and MC68K.

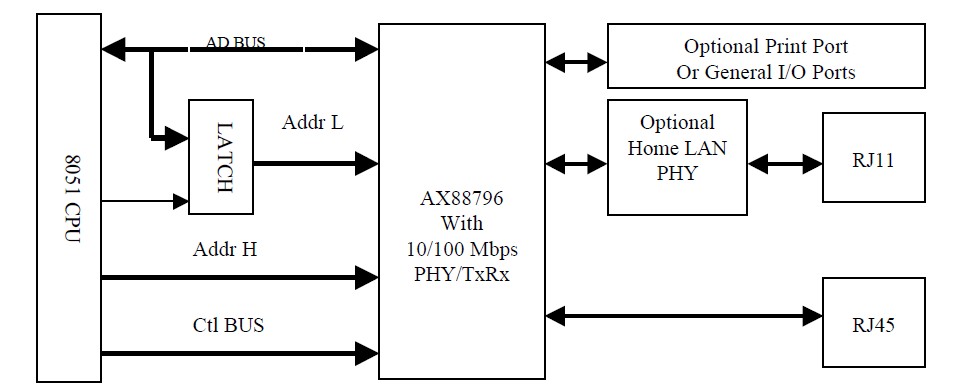

Diagrams
 |
