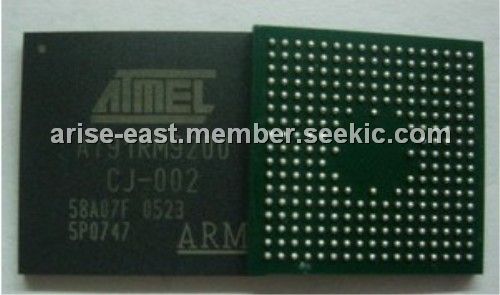

AT91RM9200-CJ-002

Product Summary

The AT91RM9200-CJ-002 is an ARM920T-based Microcontroller. It is a complete system-on-chip built around the ARM920T ARM Thumb processor.The AT91RM9200-CJ-002 incorporates a rich set of system and application peripherals and standard interfaces in order to provide a single-chip solution for a wide range of compute-intensive applications that require maximum functionality at minimum power consumption at lowest cost.The AT91RM9200-CJ-002 integrates a wide range of standard interfaces including USB 2.0 Full Speed Host and Device and Ethernet 10/100 Base-T Media Access Controller (MAC), which provides connection to a extensive range of external peripheral devices and a widely used networking layer. In addition, it provides an extensive set of peripherals that operate in accordance with several industry standards, such as those used in audio, telecom, Flash Card, infrared and Smart Card applications. To complete the offer, the AT91RM9200-CJ-002 benefits from the integration of a wide range of debug features including JTAG-ICE, a dedicated UART debug channel (DBGU) and an embedded real time trace. This enables the development and debug of all applications, especially those with real-time constraints.

Parametrics

AT91RM9200-CJ-002 absolute maximum ratings: (1)Operating Temperature (Industrial): -40°C to +85°C; (2)Storage Temperature-60°C to: +150°C; (3)Voltage on Input Pins with Respect to Ground: -0.3V to VDDIO+0.3V (+4V max); (4)Maximum Operating Voltage (VDDCORE, VDDPLL and VDDOSC): 2V; (5)Maximum Operating Voltage (VDDIOM and VDDIOP): 4V; (6)DC Output Current (SDA10, SDCKE, SDWE, RAS, CAS): 16 mA; (7)DC Output Current (Any other pin): 8 mA.

Features

AT91RM9200-CJ-002 features: (1) Incorporates the ARM920T? ARM Thumb Processor: 200 MIPS at 180 MHz, Memory Management Unit, 16-KByte Data Cache, 16-KByte Instruction Cache, Write Buffer, In-circuit Emulator including Debug Communication Channel, Mid-level Implementation Embedded Trace Macrocell (256-ball BGA Package only); (2) Low Power: On VDDCORE 24.4 mA in Normal Mode, 520 μA in Standby Mode; (3) Additional Embedded Memories: 16K Bytes of SRAM and 128K Bytes of ROM; (4) External Bus Interface (EBI): Supports SDRAM, Static Memory, Burst Flash, Glueless Connection to CompactFlash? and NAND Flash/SmartMedia; (5) Master/Slave Serial Peripheral Interface (SPI): 8- to 16-bit Programmable Data Length, 4 External Peripheral Chip Selects; (6) Two 3-channel, 16-bit Timer/Counters (TC): Three External Clock Inputs, Two Multi-purpose I/O Pins per Channel, Double PWM Generation, Capture/Waveform Mode, Up/Down Capability; (7) Two-wire Interface (TWI): Master Mode Support, All 2-wire Atmel EEPROMs Supported; (8) IEEE 1149.1 JTAG Boundary Scan on All Digital Pins; (10) Power Supplies: 1.65V to 1.95V for VDDCORE, VDDOSC and VDDPLL, 3.0V to 3.6V for VDDIOP (Peripheral I/Os)and for VDDIOM (Memory I/Os); (10) Available in a 208-pin Green PQFP or 256-ball RoHS-compliant BGA Package.

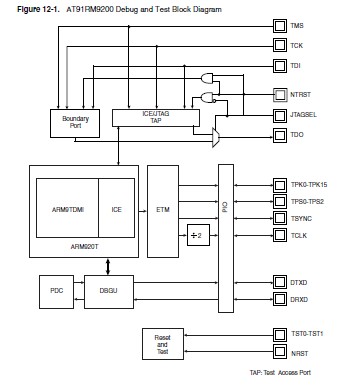

Diagrams
