Product Summary

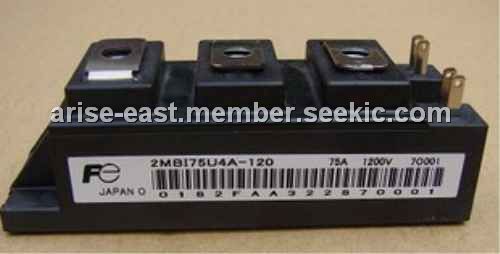

The 2MBI75U4A-120 is an IGBT Module. The applications of the 2MBI75U4A-120 include Inverter for Motor drive, AC and DC Servo drive amplifier, Uninterruptible power supply, Industrial machines, such as Welding machines.
Parametrics
2MBI75U4A-120 absolute maximum ratings: (1)Collector-Emitter voltage, VCES: 1200v; (2)Gate-Emitter voltaga, VGES: ±20; (3)Collector current, IC, continuous: 100A at c=25℃; 75A at c=80℃; Icp, 1ms: 200A at c=25℃; 150A at c=80℃; -IC: 75A; -IC pulse: 150A; (4)Collector Power Dissipation: 400 W; (5)Junction temperature: +150 ℃; (6)Storage temperature: -40 to +125 ℃; (7)Isolation voltage between terminal and copper base *1: 2500 VAC; (8)Screw Torque: Mounting: 3.5 N·m; Terminals: 3.5 N·m.
Features
2MBI75U4A-120 features: (1)High speed switching; (2)Voltage drive; (3)Low inductance module structure.
