Product Summary

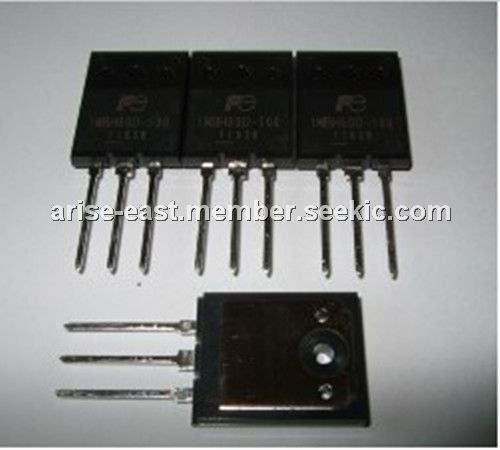

The 1MBH60D-100 is an igbt.
Parametrics
1MBH60D-100 absolute maximum ratings: (1)VcES: 900V; (2)Vges: ±20V; (3)Ic: 60A; (4)Icpuis (50//s): 180A; (5)Pc: 260W; (6)Tj: + 150℃; (7)Tstg: -40~ + 150V; (8)V RKM: 1000V; (9)If: 15A; (10)Ipp (10^s): 120A; (11)Pd: 60W; (12)Tj: 十150℃.
Features
1MBH60D-100 features: (1)High Speed Switching; (2)Low Saturation Voltage; (3)High Impedance Gate; (4)Small Package.

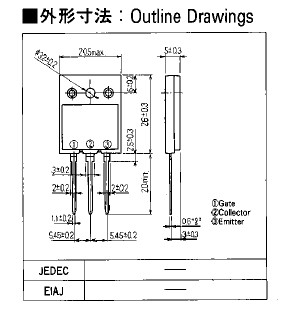

Diagrams
 |
