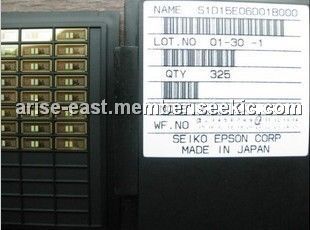

Product Summary
The S1D15E06D01B000 is direct ram data display by display data ram. The S1D15E06D01B000 series is a single chip MLS driver for dot matrix liquid crystal displays which can be directly connected to the microcomputer bus. The S1D15E06D01B000 accepts the 8-bit parallel or serial display data from the microcomputer to store the data in the on-chip display data RAM, and issues liquid crystal drive signals independently of the microcomputer. Display data RAM read/write operations do not require operation clock from outside, thereby ensuring operation with the minimum current consumption. Furthermore, the S1D15E06D01B000 incorporates a LCD-drive power supply characterized by low power consumption and a CR oscillator circuit for display clock; therefore, the display system of a handy and high-performance instrument can be realized by use of the minimum current consumption and minimum chip configuration.
Parametrics
S1D15E06D01B000 absolute maximum ratings: (1)Power voltage (1)VDD: –0.3 to +4.0v; (2)Power voltage (2)V3, VOUT: –0.3 to +17.0v; (3)Power voltage (3)V2, V1, VC, MV1, MV2: –0.3 to V3v; (4)Input voltage VIN: –0.3 to VDD+0.3v; (5)Output voltage VO: –0.3 to VDD+0.3v; (6)Operating temperature TOPR: –40 to +85℃.
Features
S1D15E06D01B000 features: can be summarized as (1)RAM capacity 132 × 160 × 2 = 42,240 bits; (2)Liquid crystal drive circuit 132 common outputs and 160 segment outputs; (3)High-speed 8-bit MPU interface (directly connectable to the MPUs of both 80/68 series)/serial interface possible; (4)Wide operation temperature range: –40 to 85°C; (5)CMOS process; (6)Shipping form : Bare chips, TCP; (7)Light and radiation proof measures are not taken in designing.; (8)Direct RAM data display by display data RAM.

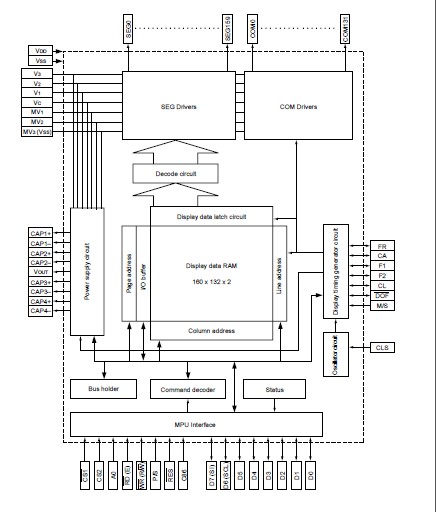

Diagrams
