Product Summary

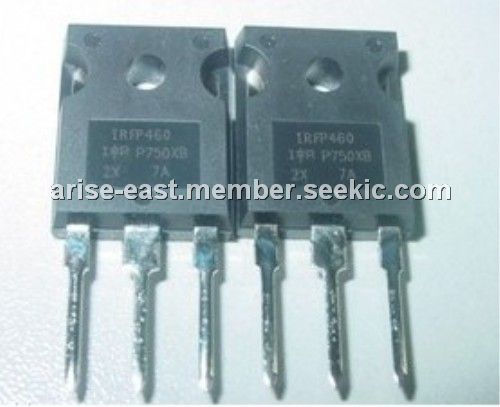

The IRFP460PBF is an international ior rectifier. Third Generation HEXFETs from International Rectifier provide the designer with the best combination of fast switching, mggedized device design, low on-resistance and cost-effectiveness. The IRFP460PBF package is preferred for commercial-industrial applications where higher power levels preclude the use of T0-220 devices. The IRFP460PBF is isolated mounting hole. It also provides greater creepage distance between pins to meet the requirements of most safety specifications.
Parametrics
IRFP460PBF absolute maximum ratingS: (1)id @ TC=25℃ continuous drain current, vgs@10v: 13A; (2)I DM Pulsed Drain Current ①: 80; (3)PD @ Tc = 25cC Power Dissipation: 280W; (4)PD @ Tc = 25cC Linear Derating Factor: 2.2W/°C; (5)Vgs Gate-to-Source Voltage ±20V; (6)Eas Single Pulse Avalanche Energy ②: 960mJ; (7)Iar Avalanche Current ①: 20A.
Features
IRFP460PBF features: (1)Dynamic dv/dt Rating; (2)Repetitive Avalanche Rated; (3)Isolated Central Mounting Hole; (4)Fast Switching; (5)Ease of Paralleling; (6)Simple Drive Requirements; (7)Lead-Free.
Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() IRFP460PBF |
![]() Vishay/Siliconix |
![]() MOSFET N-Chan 500V 20 Amp |
![]() Data Sheet |
![]()
|
|
||||||||||||
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||
![]() |
![]() IRFP044 |
![]() Vishay/Siliconix |
![]() MOSFET N-Chan 60V 57 Amp |
![]() Data Sheet |
![]() Negotiable |
|
||||||||||||
![]() |
![]() IRFP044, SiHFP044 |
![]() Other |
![]() |
![]() Data Sheet |
![]() Negotiable |
|
||||||||||||
![]() |
![]() IRFP044N |
![]() |
![]() MOSFET N-CH 55V 53A TO-247AC |
![]() Data Sheet |
![]() Negotiable |
|
||||||||||||
![]() |
![]() IRFP044NPBF |
![]() International Rectifier |
![]() MOSFET MOSFT 55V 49A 20mOhm 40.7nCAC |
![]() Data Sheet |
![]()
|
|
||||||||||||
![]() |
![]() IRFP044PBF |
![]() Vishay/Siliconix |
![]() MOSFET N-Chan 60V 57 Amp |
![]() Data Sheet |
![]() Negotiable |
|
||||||||||||
![]() |
![]() IRFP048 |
![]() Vishay/Siliconix |
![]() MOSFET N-Chan 60V 70 Amp |
![]() Data Sheet |
![]()
|
|
