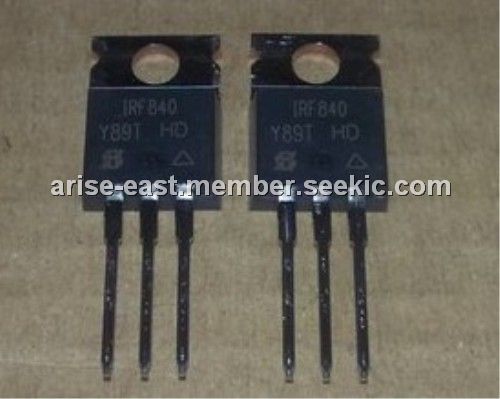

IRF840

Power MOSFET, N-Chan, 500V, 8.0 Amp, TO-220AB, Vishay Siliconix

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.48~0.65 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.48~0.65

PartNumber:: IRF840

Brand:: Vishay Siliconix - Vishay | Pack: TO | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. abby's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-04-30

From Other Seller

Part Number:IRF840
US $0.48 - 0.65
QM75DY-H

US $16.00 - 30.00 / Piece
(0) Remove
SLA4060

US $0.80 - 1.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

Third generation Power MOSFET IRF840 from Vishay provides the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness. The TO-220 package of the IRF840 is universally preferred for all commercial-industrial applications at power dissipation levels to approximately 50 W. The low thermal resistance and low package cost of the TO-220 contribute to its wide acceptance throughout the industry.

Parametrics

IRF840 absolute maximum ratings: (1)Drain-Source Voltage: 500 V; (2)Gate-Source Voltage: ± 20 V; (3)Continuous Drain Current VGS at 10 V: 8.0 A at TC = 25 ℃, 5.1 A at TC = 100 ℃; (4)Pulsed Drain Current: 32 A; (5)Linear Derating Factor: 1.0 W/℃; (6)Single Pulse Avalanche Energy : 510 mJ; (7)Repetitive Avalanche Current a: 8.0 A; (8)Repetitive Avalanche Energy : 13 mJ; (9)Maximum Power Dissipation at TC = 25 ℃: 125 W; (10)Peak Diode Recovery dV/dt: 3.5 V/ns; (11)Operating Junction and Storage Temperature Range: -55 to + 150 ℃; (12)Soldering Recommendations (Peak Temperature) for 10 s: 300 ℃; (13)Mounting Torque at 6-32 or M3 screw:10 lbf · in; 1.1 N · m.

Features

IRF840 features: (1)Dynamic dV/dt Rating; (2)Repetitive Avalanche Rated; (3)Fast Switching; (4)Ease of Paralleling; (5)Simple Drive Requirements; (6)Lead (Pb)-free Available.
